2CDG120006R0011
Part Number: 2CDG120006R0011
Product Information
Extended Description

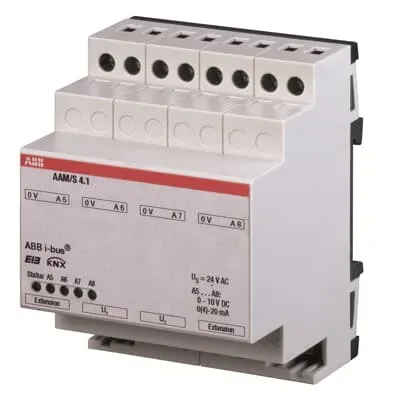

2CDG120006R0011 ABB: The Analogue Actuator Module enlarges the Analogue Actuator AA/S 4.1 by four analogue outputs. The device converts received values into analogue output signals. These outputs are software-parameterized for voltage or current signals. The 24 V AC power supply can be carried out by AA/S 4.1.
Instructions and Manuals
Installation and Operating Instructions (.PDF) AAM/S4.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] AAM/S4.1
Function
Analogue Actuator Module
Sub-Function
4-fold
Number of Outputs
4
Number of LEDs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Manual Operation
No
Terminal Type
Bus Connection
Voltage Range
0 ... 10 V DC
Auxiliary Voltage AC/DC
KNX
Output Voltage (Uout)
0 ... 10 V DC
Maximum Switching Current
0.02 A
Power Loss
0 W
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
69.5 mm
Product Net Weight
0.15 kg
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) AAM/S4.1
ETIM 9
EC001096 - Analogue actuator for bus system
eClass
V11.0 : 27143109
Object Classification Code
A
