2CDG120032R0011
Part Number: 2CDG120032R0011
Product Information
Extended Description

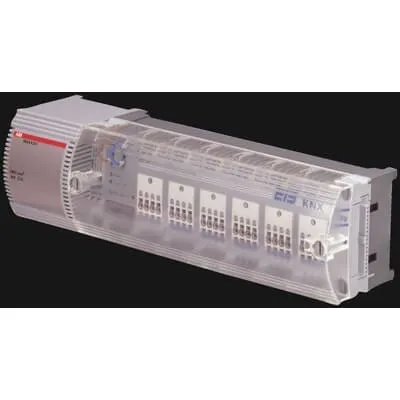

2CDG120032R0011 ABB: Controls up to 13 thermoelectric valve drives (24 V), max. 4 per channel. Installation in heating circuit distribution systems where the application of a triac ensures noiseless switching of the drives. Mains plug on the transformer (230 V).
Instructions and Manuals
Installation and Operating Instructions (.PDF) VAA/A6.24.1
Mounting Type
DIN-Rail | Surface Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] VAA/A6.24.1 | Product Information (.PDF) [EN] VAA/A6.24.1
Number of Outputs
6
Compatible Bus Systems
KNX (TP)
Manipulated Variable
Switching
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Voltage Range
24 V
Output Voltage (Uout)
24 V DC
Maximum Switching Current
1 A
Output Current Maximum (Iout)
1 A
Power Loss
18 W
Color
transparent
Product Net Width
302 mm
Product Net Height
75 mm
Product Net Depth / Length
70 mm
Product Net Weight
1.7 kg
Replacement Product ID (NEW)
2CDG120061R0011
E-Number (Sweden)
1751048
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) VAA/A6.24.1
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
Object Classification Code
A
