2CDG120035R0011
Part Number: 2CDG120035R0011
Product Information
Extended Description

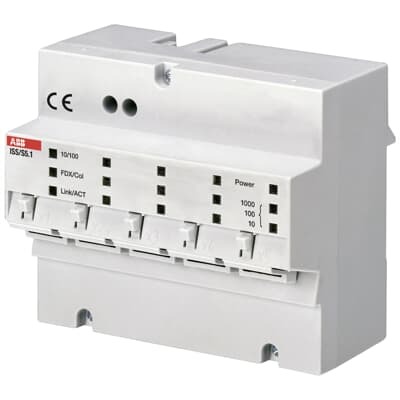

2CDG120035R0011 ABB: IP Switch Slave for MDRC installation. For networking of up to 5 end devices. Can be side connected to the IP Switch Master (ISM/S), accordingly can be extended to 10Â end devices. The slave is only functional together with the master.
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] ISx/S5.1
Number of Outputs
5
Compatible Bus Systems
KNX (IP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Power Loss
0 W
Width in Number of Modular Spacings
6.0
Product Net Width
107.5 mm
Product Net Height
90 mm
Product Net Depth / Length
66.7 mm
Product Net Weight
0.15 kg
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) ISx/S5.1
ETIM 9
EC000734 - Network switch
eClass
V11.0 : 19170130
Object Classification Code
A
