2CDG120036R0011
Part Number: 2CDG120036R0011
Product Information
Extended Description

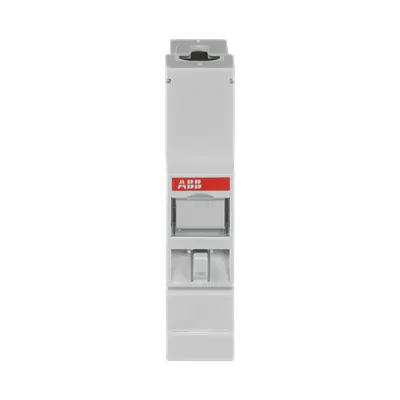

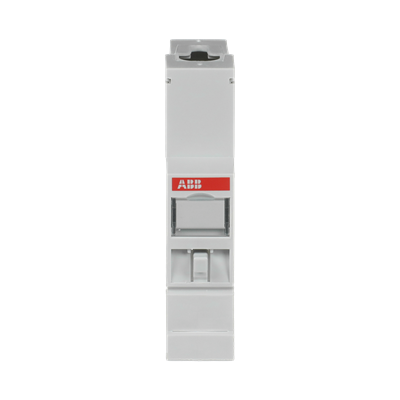

2CDG120036R0011 ABB: The IP Patch Module consists of an RJ-45 module and a mounting adapter for fixing to the mounting rail.
Instructions and Manuals
Installation and Operating Instructions (.PDF) IPM/S1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] IPM/S1.1
Number of Outputs
1
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 1
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Power Loss
0 W
RAL Number
RAL 7035 - Light Grey
Color
light grey
Width in Number of Modular Spacings
1.0
Product Net Width
18 mm
Product Net Height
73 mm
Product Net Depth / Length
66.7 mm
Product Net Weight
0.052 kg
Dimension Diagram
Dimensional Drawing (.PDF) [XX] Neutral for products with XTE Housing
E-Number (Finland)
2815415
E-Number (Norway)
4546687
E-Number (Sweden)
1740132
E-Number (Switzerland)
405701305
RoHS Information
CE Declaration of Conformity (.PDF) IPM/S1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) IPM/S1.1
ETIM 9
EC001128 - Patch panel copper (twisted pair)
eClass
V11.0 : 19170112
Object Classification Code
A
