2CDG120037R0011
Part Number: 2CDG120037R0011
Product Information
Extended Description

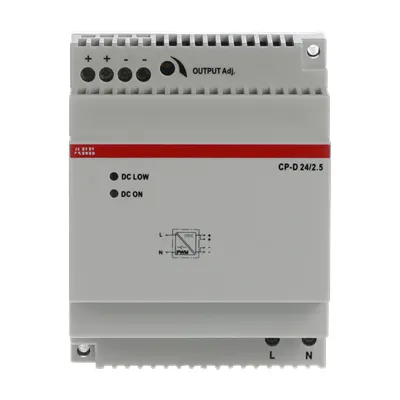

2CDG120037R0011 ABB: Additional power supply for priOn power bus coupling unit 6120/13, System Access Point SAP/S.13, SmartTouch 10“ ST/U10.2.xx-xxx, RoomTouch 4” RT/U12.86.xx-xxx, RoomTouch 5“ RT/U30.x.xx-xxx, Trevion 2.4” Display SD/U12.xx.xx-xxx and other devices which require additional 24 V DC supply voltage.
Instructions and Manuals
Installation and Operating Instructions (.PDF) CP-D24/2.5
Wiring Diagram
Connection diagram (.SVG) [XX] CP-D 24/2.5
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Data sheet - CP-D 24/2.5 Primary switch mode power supply
Number of Outputs
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Recommended Screw Driver
PH1
Number of Batteries
0
Terminal Type
Screw Terminals
Voltage Range
110 ... 230 V AC
Output Voltage (Uout)
24 V DC
Power Consumption (@Pcons)
70 W
Power Loss
70.1 W
Color
light grey
Width in Number of Modular Spacings
4.0
Product Net Width
71 mm
Product Net Height
91 mm
Product Net Depth / Length
57.5 mm
Product Net Weight
0.252 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Norway)
4546609
RoHS Information
RoHS - Declaration of Conformity CP-D24/2.5
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) CP-D24/2.5
ETIM 9
EC002540 - DC-power supply
eClass
V11.0 : 27040701
UNSPSC
39121004
IDEA Granular Category Code (IGCC)
4130 >> DC-power supply
Object Classification Code
A
