2CDG120038R0011
Part Number: 2CDG120038R0011
Product Information
Extended Description

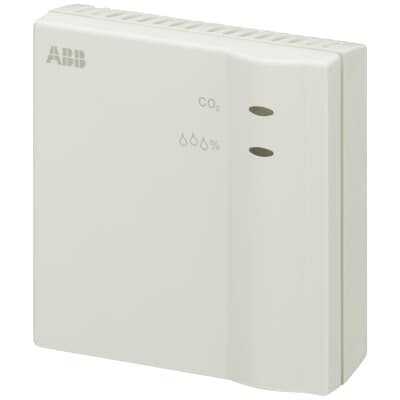

2CDG120038R0011 ABB: The Air Quality Sensor (CO2 sensor) accurately measures the CO2 concentration, humidity and temperature in a room. Three independent thresholds can be set for the CO2 concentration and the relative humidity in addition to a threshold for the temperature. Exceeding or under-running the thresholds can trigger a response. Disable object for every threshold. Measured variables can be transmitted directly on the bus. Communication object “Ventilation” is used for RPM control or as a position indicatior for the ventilation flaps. Maintenance free sensor. The sensor is powered via the bus.
Wiring Diagram
Connection diagram (.GIF) [XX] LGS/A 1.1
Mounting Type
Surface Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] LGS/A1.1 | Product Information (.PDF) [EN] LGS/A1.1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Power Loss
0.35 W
RAL Number
RAL 9010 - Pure White
Color
white
Product Net Width
74 mm
Product Net Height
31 mm
Product Net Depth / Length
74 mm
Product Net Weight
0.092 kg
E-Number (Sweden)
1750229
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) LGS/A1.1
ETIM 9
EC000926 - Physical sensor for bus system
eClass
V11.0 : 27143137
Object Classification Code
A
