2CDG120044R0011
Part Number: 2CDG120044R0011
Product Information
Extended Description

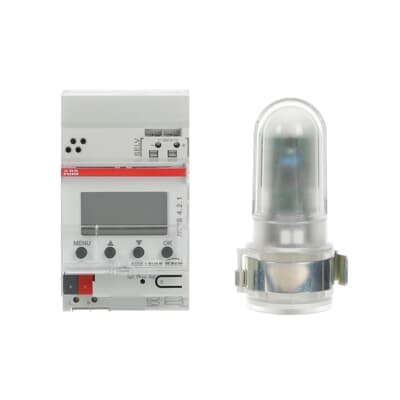

2CDG120044R0011 ABB: The device can be used as a twilight switch (1 ... 100 lux) or as a light value switch (100 ... 20.000 lux). One Outside Light Sensor LFO/A 1.1 is supplied with the device.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [DE] HS/S 4.2.1
Wiring Diagram
Connection diagram (.JPG) [DE] HS/S 4.2.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Manual (.PDF) [EN] HS/S 4.2.1
Number of Channels
10
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
Yes
Illuminance
1 ... 100000 lx
Number of Batteries
0
Auxiliary Voltage AC/DC
KNX
Power Loss
1 W
Color
light grey
Width in Number of Modular Spacings
3.0
Product Net Width
53 mm
Product Net Height
90 mm
Product Net Depth / Length
70 mm
Product Net Weight
0.187 kg
Dimension Diagram
Dimensional Drawing Light Sensor (.pdf) [XX] HS/S 4.2.1
Screen Size
2 in
E-Number (Finland)
2815442
E-Number (Norway)
4544150
E-Number (Sweden)
1738424
E-Number (Switzerland)
405461105
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) HS/S 4.2.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) HS/S 4.2.1
KNX Certificate
KNX Certificate (.PDF) [EN] HS/S4.2.1
ETIM 9
EC000927 - Brightness sensor for bus system
eClass
V11.0 : 27143111
UNSPSC
39121801
Object Classification Code
A
