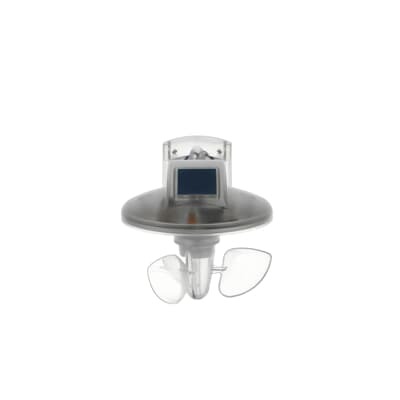

2CDG120046R0011
Part Number: 2CDG120046R0011
Product Information
Extended Description
2CDG120046R0011 ABB: The device detect wind speed, rain, brightness in 3 directions, twilight, temperature, day/night an over the GPS signal date and time. An additional heating transformer is not needed.
Instructions and Manuals
Installation and Operating Instructions (.PDF) WES/A3.1
Wiring Diagram
Technical Data (.PDF) [DE] WES/A3.1
Mounting Type
Surface Mounted | Wall mounting
Ambient Air Temperature
Operation -25 ... +60 °C
Degree of Protection
IP44
Data Sheet, Technical Information
Technical Data (.PDF) [EN] WES/A3.1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Additional Information
Heater included
Number of Batteries
0
Auxiliary Voltage AC/DC
24 V DC
Rated Current (In)
0.2 A
Power Loss
4.15 W
Color
transparent
Product Net Width
121 mm
Product Net Height
109 mm
Product Net Depth / Length
227 mm
Product Net Weight
0.36 kg
Dimension Diagram
Technical Data (.PDF) [DE] WES/A3.1
Replacement Product ID (NEW)
2CDG120091R0011
E-Number (Finland)
2815539
E-Number (Sweden)
1738707
E-Number (Switzerland)
205550305
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) WES/A3.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
4fbb172d-ec04-4579-b47f-6ba692d89e0d Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) WES/A3.1
ETIM 9
EC000926 - Physical sensor for bus system
eClass
V11.0 : 27143137
Object Classification Code
A
