2CDG120048R0011
Part Number: 2CDG120048R0011
Product Information
Extended Description

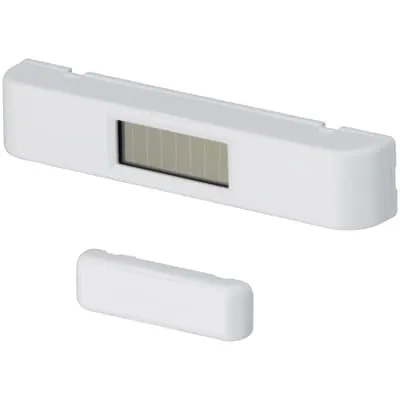

2CDG120048R0011 ABB: The Magnetic Contact EnOcean is a surface mounted device for windows or doors. Its purpose is to recognize the opening or closing of windows or doors. The Magnetic Contact EnOcean communicates on this with a gateway via radio. The frequency is 868.3 MHz. The interior range is up to 30 m, typically 5 – 10 m, depending on the structural conditions. When using the ABB i-bus® KNX/EnOcean Gateway EG/A 32.2.1, to link to the KNX-Bus, the signal strength can be measured with the ABB i-bus® Tool. The window contact supplies itself with power via a solar cell and does not require a battery or other supply voltage.
Instructions and Manuals
Installation and Operating Instructions (.PDF) MKE/A1.868.1
Mounting Type
Surface Mounted
Degree of Protection
IP40
Data Sheet, Technical Information
Technical Data (.PDF) [EN] MKE/A1.868.1
Compatible Bus Systems
EnOcean | KNX (TP)
Product Range
KNX
Number of Batteries
0
Power Loss
0 W
Color
white
Product Net Width
19 mm
Product Net Height
15 mm
Product Net Depth / Length
110 mm
Product Net Weight
0.021 kg
E-Number (Sweden)
1738897
E-Number (Switzerland)
205530205
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) MKE/A1.868.1
ETIM 9
EC000926 - Physical sensor for bus system
eClass
V11.0 : 27143137
Object Classification Code
A
