2CDG120051R0011
Part Number: 2CDG120051R0011
Product Information
Extended Description

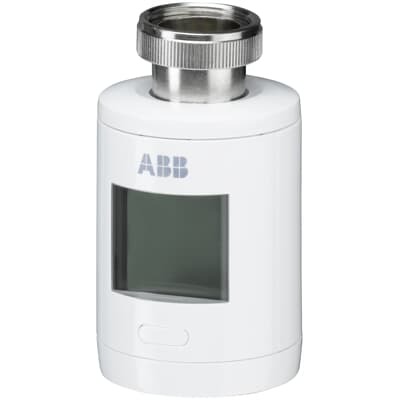

2CDG120051R0011 ABB: The Valve Drive EnOcean is used for efficient room temperature control. It communicates via the wireless, bidirectional EnOcean protocol.
The Valve Drive has a large display for showing the current room temperature setpoint and a setting dial for manual setpoint adjustment.
Via the ABB i-bus KNX/EnOcean Gateway (EG/A 32.2.1) the Valve Drive EnOcean can easily be included in every KNX system
Instructions and Manuals
Product Manual (.PDF) [EN] SE/K1.868.1
Mounting Type
Built-in
Degree of Protection
IP30
Data Sheet, Technical Information
Product Manual (.PDF) [EN] SE/K1.868.1
Compatible Bus Systems
EnOcean
Product Range
KNX
Manual Operation
No
Battery Chemical Composition
Lithium
Battery Type
Portable
Battery Weight
30 g
Number of Batteries
2
Rated Voltage (Ur)
3
Power Loss
0 W
Color
white
Product Net Width
57 mm
Product Net Height
100 mm
Product Net Depth / Length
57 mm
Product Net Weight
0.25 kg
Screen Size
1.8 in
E-Number (Switzerland)
405570305
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) SE/K1.868.1
RoHS Status
Following EU Directive 2011/65/EU
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) SE/K1.868.1
ETIM 9
EC000792 - Actuating drive for bus system
eClass
V11.0 : 27143135
Object Classification Code
A
