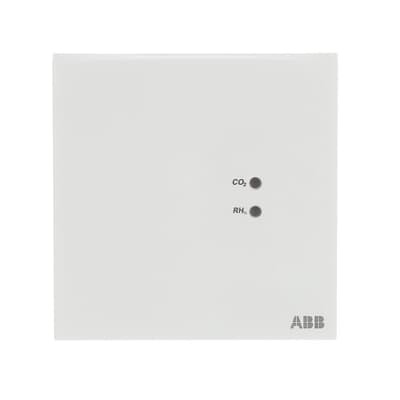

2CDG120059R0011
Part Number: 2CDG120059R0011
Product Information
Extended Description

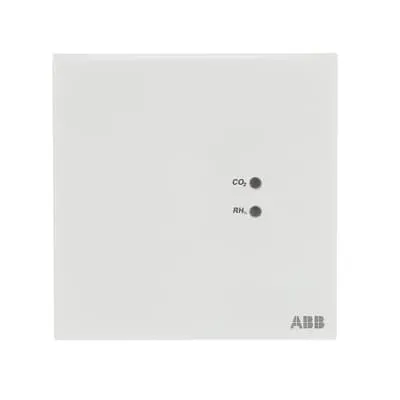

2CDG120059R0011 ABB: For the control and measuring of the room air quality and temperature. Accurately measures the C02 concentration (390…10.000 ppm), humidity (0...100 %) and temperature (0…50 °C) in a room and sends the values on the bus. By using the integrated thresholds the measured values can be monitored. With the integrated controller it is possible to control the room temperature and the HVAC actuators. With integrated Bus Coupler.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] LGS/A 1.2
Wiring Diagram
Connection diagram (.JPG) [XX] LGS/A 1.2
Mounting Type
Surface Mounted
Modular Components Included
Complete Device
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] LGS/A 1.2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Manual Operation
No
Number of Batteries
0
Power Loss
0.3 W
Color
white
Product Net Width
81 mm
Product Net Height
81 mm
Product Net Depth / Length
17 mm
Product Net Weight
0.06 kg
Dimension Diagram
Dimensional Drawing (.PNG) [XX] LGS/A 1.2
Replaced Product ID (OLD)
2CDG120038R0011
E-Number (Finland)
2814547
E-Number (Norway)
4544135
E-Number (Sweden)
1739220
E-Number (Switzerland)
205380105
RoHS Information
CE Declaration of Conformity (.PDF) [XX] LGS/A 1.2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) [XX] LGS/A 1.2
KNX Certificate
KNX Certificate (.PDF) [EN] LGS/A1.2
ETIM 9
EC000926 - Physical sensor for bus system
eClass
V11.0 : 27143137
UNSPSC
39121801
