2CDG120060R0011
Part Number: 2CDG120060R0011
Product Information
Extended Description

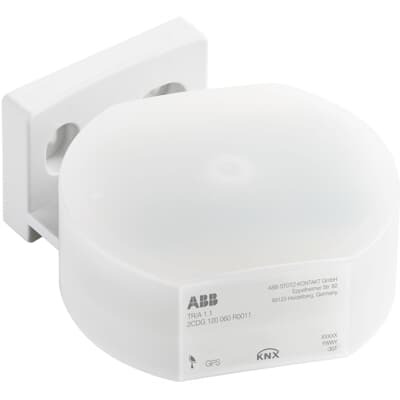

2CDG120060R0011 ABB: For the reception and processing of the GPS signal, as well as for brightness and temperature measurement. The sensor measures the brightness and outside temperature and sends them on the KNX bus. Likewise the time, date and geographical coordinates are send to the KNX bus. Additionally the sunrise and sunset times are also send to the bus. With integrated Bus Coupler.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] TR/A 1.1
Wiring Diagram
Dimensional Drawing (.PNG) [XX] TR/A 1.1
Mounting Type
Surface Mounted
Modular Components Included
Complete Device
Degree of Protection
IP54
Data Sheet, Technical Information
Technical data (.PDF) [EN] TR/A 1.1
Communication Interface
GPS
Number of Channels
1
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Transmission Standard
Twisted Pair Wiring
Product Type
Support antenna
Options Provided
Weekly program | Daily program
Manual Operation
No
Number of Batteries
0
Terminal Type
Bus Connection
Voltage Range
KNX
Power Loss
0.3 W
Color
white
Product Net Width
89.5 mm
Product Net Height
40 mm
Product Net Depth / Length
75 mm
Product Net Weight
0.09 kg
Dimension Diagram
Dimensional Drawing (.PNG) [XX] TR/A 1.1
E-Number (Finland)
2814548
E-Number (Norway)
4544008
E-Number (Sweden)
1739221
E-Number (Switzerland)
405992005
RoHS Information
CE Declaration of Conformity (.PDF) [EN] TR/A 1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) [EN] TR/A 1.1
ETIM 9
EC000689 - Time switch for bus system
eClass
V11.0 : 27143140
UNSPSC
39121801
