2CDG120061R0011
Part Number: 2CDG120061R0011
Product Information
Extended Description

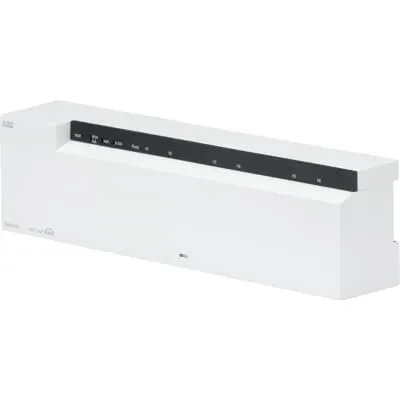

2CDG120061R0011 ABB: For the control of up to twelve thermoelectric 24 V DC or analog 0-10V valve drives (two per channel). With integrated power supply for the valve drives. The device has an integrated relay output to switch the heating circuit pump in dependence of the control value of the valve outputs. The valve outputs can be controlled by the internal or an external room temperature controller. The device is suitable for the installation in the (floor) heating distribution system.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] VAA/A 6.24.2
Wiring Diagram
Connection diagram (.SVG) [XX] VAA/A 6.24.2
Mounting Type
DIN-Rail
Modular Components Included
Complete Device
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [EN] VAA/A 6.24.2
Special Functions
Valve Protection
Number of Outputs
6
Compatible Bus Systems
KNX (TP)
Manipulated Variable
Continious
Product Range
KNX
Manual Operation
Yes
Number of Batteries
0
Voltage Range
24 V
Auxiliary Voltage AC/DC
230 V AC
Output Voltage (Uout)
0 ... 10 V DC | 24 V DC
Maximum Switching Current
6 A
Output Current Maximum (Iout)
1.4 A
Power Loss
1 W
Color
white
Product Net Width
290 mm
Product Net Height
76 mm
Product Net Depth / Length
52 mm
Product Net Weight
0.5 kg
Dimension Diagram
Dimensional drawing (.JPG) [XX] VAA/A 6.24.2
E-Number (Finland)
2814616
E-Number (Sweden)
1739851
RoHS Information
CE Declaration of Conformity (.PDF) [XX] VAA/A 6.24.2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) [XX] VAA/A 6.24.2
ETIM 9
EC001586 - Heating actuator for bus system
eClass
V11.0 : 27143147
UNSPSC
39121801
Object Classification Code
A
