2CDG120065R0011
Part Number: 2CDG120065R0011
Product Information
Extended Description

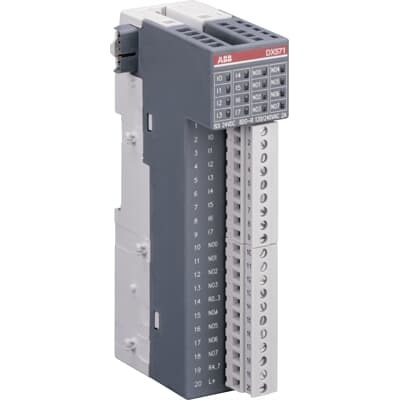

2CDG120065R0011 ABB: Extension module for the BAC/S Building Automation Controller KNX with 8 digital inputs and 8 digital outputs. The digital inputs process 24 V DC signals. The relay outputs switch a maximum of 2 A at 24 V DC and a maximum of 1.5 A at 120/240 V AC. Connection of the cables via pluggable spring terminals.
Instructions and Manuals
Product information (.PDF) [XX] BCM/S 16.1.3.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product information (.PDF) [XX] BCM/S 16.1.3.1
Number of Outputs
8
Number of Digital Inputs
8
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 8
Product Range
KNX
Manual Operation
No
Auxiliary Voltage AC/DC
24 V DC
Output Voltage (Uout)
24 V DC
Maximum Switching Current
2 A
Power Loss
2.3 W
Color
grey
Product Net Width
34 mm
Product Net Height
135 mm
Product Net Depth / Length
74 mm
Product Net Weight
0.21 kg
E-Number (Finland)
2814621
E-Number (Sweden)
1739819
E-Number (Switzerland)
405590035
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Product information (.PDF) [XX] BCM/S 16.1.3.1
ETIM 9
EC001419 - PLC digital I/O-module
eClass
V11.0 : 27242204
UNSPSC
32151705
Object Classification Code
A
