2CDG120066R0011
Part Number: 2CDG120066R0011
Product Information
Extended Description

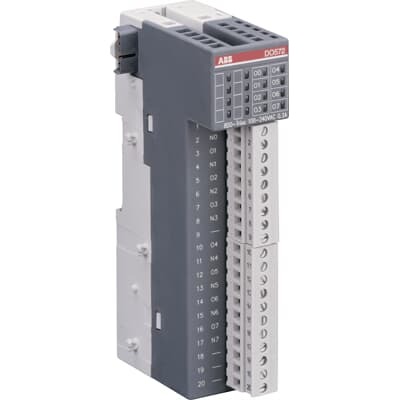

2CDG120066R0011 ABB: Extension module for the BAC/S Building Automation Controller KNX with 8 digital outputs. The digital triac outputs switch a maximum of 0.3 A at 120/240 V AC. Connection of the cables via pluggable spring terminals.
Instructions and Manuals
Product information (.PDF) [XX] BCM/S 8.0.2.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product information (.PDF) [XX] BCM/S 8.0.2.1
Number of Outputs
8
Product Range
KNX
Manual Operation
No
Auxiliary Voltage AC/DC
24 V DC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
0.3 A
Power Loss
3 W
Color
grey
Product Net Width
34 mm
Product Net Height
135 mm
Product Net Depth / Length
74 mm
Product Net Weight
0.18 kg
E-Number (Finland)
2814622
E-Number (Sweden)
1739820
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Product information (.PDF) [XX] BCM/S 8.0.2.1
ETIM 9
EC001419 - PLC digital I/O-module
eClass
V11.0 : 27242204
UNSPSC
32151705
Object Classification Code
A
