2CDG120067R0011
Part Number: 2CDG120067R0011
Product Information
Extended Description

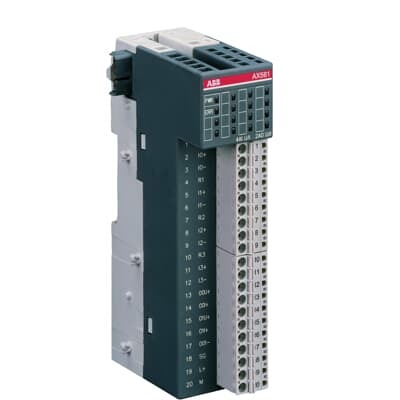

2CDG120067R0011 ABB: Extension module for the BAC/S Building Automation Controller KNX with 4 analog inputs and 2 analog outputs. The inputs and outputs support voltage signals from 0 V ... + 10 V, 0 V ... + 5 V, -2.5 V ... + 2.5 V and -5 V ... + 5 V as well as current signals of 0 mA ... 20 mA and 4 mA ... 20 mA. Connection of the cables via pluggable spring terminals.
Instructions and Manuals
Product information (.PDF) [XX] BCM/S 6.5.5.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product information (.PDF) [XX] BCM/S 6.5.5.1
Number of Outputs
2
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Product Range
KNX
Manual Operation
No
Auxiliary Voltage AC/DC
24 V DC
Output Voltage (Uout)
0 ... 10 V DC
Power Loss
4.9 W
Color
grey
Product Net Width
34 mm
Product Net Height
135 mm
Product Net Depth / Length
74 mm
Product Net Weight
0.18 kg
E-Number (Finland)
2814623
E-Number (Sweden)
1739821
E-Number (Switzerland)
405630005
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
Product information (.PDF) [XX] BCM/S 6.5.5.1
ETIM 9
EC001420 - PLC analogue I/O-module
eClass
V11.0 : 27242201
UNSPSC
32151705
Object Classification Code
A
