2CDG120070R0011
Part Number: 2CDG120070R0011
Product Information
Extended Description

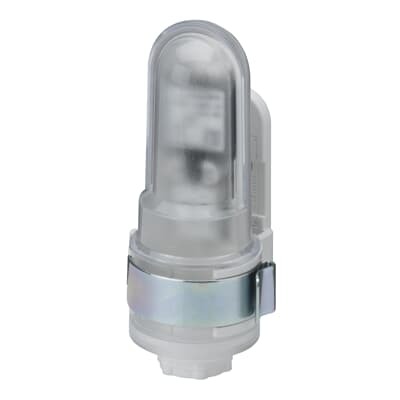

2CDG120070R0011 ABB: For the connection to the Radio Time Switch FW/S 8.2.1. The device receives time and date via GPS signal which is available worldwide.
Instructions and Manuals
Installation and Operating Instructions (.PDF) FAG/A1.2
Wiring Diagram
Dimensional Drawing (.SVG) [XX] FAG/A 1.2
Mounting Type
Surface Mounted
Degree of Protection
IP54
Data Sheet, Technical Information
Installation and Operating Instructions (.PDF) FAG/A1.2
Compatible Bus Systems
KNX (TP)
Product Range
KNX
Number of Batteries
0
Power Loss
0 W
Color
white
Product Net Width
85 mm
Product Net Height
50 mm
Product Net Depth / Length
120 mm
Product Net Weight
0.156 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] FAG/A 1.2
Replaced Product ID (OLD)
2CDG120041R0011
E-Number (Finland)
2818996
E-Number (Norway)
4544068
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [XX] FAG/A1.2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [XX] FAG/A1.2
ETIM 9
EC002296 - Accessories/spare parts for time switches
eClass
V11.0 : 27142391
