2CDG120082R0011
Part Number: 2CDG120082R0011
Product Information
Extended Description

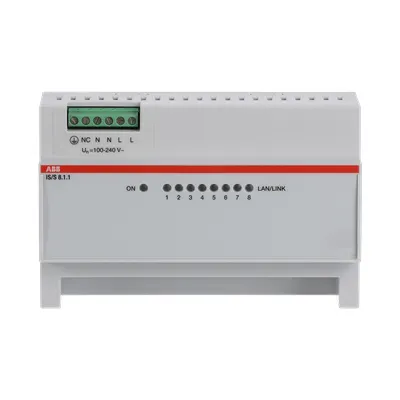

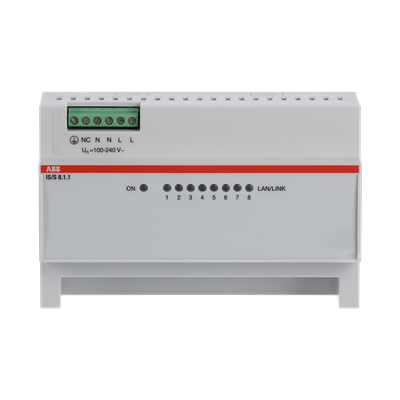

2CDG120082R0011 ABB: The IP Switch is an industrial-grade, 8 Ports, Fast Ethernet (100 Mbit/s), unmanaged switch with plug-and-play capabilities, designed for installation in electrical distribution boards and small housings for rapid mounting on 35mm DIN rails (to EN 60715).
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] IS/S 8.1.1
Wiring Diagram
Connection diagram (.JPG) [XX] IS/S 8.1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical Data (.PDF) [RU] IS/S 8.1.1
Product Range
KNX
Transmission Standard
Ethernet
Manual Operation
No
Number of Batteries
0
Auxiliary Voltage AC/DC
100 ... 240 V AC
Power Loss
1.4 W
Color
light grey
Width in Number of Modular Spacings
8.0
Product Net Width
90 mm
Product Net Height
64 mm
Product Net Depth / Length
140 mm
Product Net Weight
0.25 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 8MW
E-Number (Finland)
7405700
E-Number (Norway)
6307464
E-Number (Sweden)
1740123
E-Number (Switzerland)
405701505
RoHS Information
CE Declaration of Conformity (.PDF) [XX] IS/S 8.1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) [XX] IS/S 8.1.1
ETIM 9
EC000734 - Network switch
eClass
V11.0 : 19170130
