2CDG220003R0011
Part Number: 2CDG220003R0011
Product Information
Extended Description

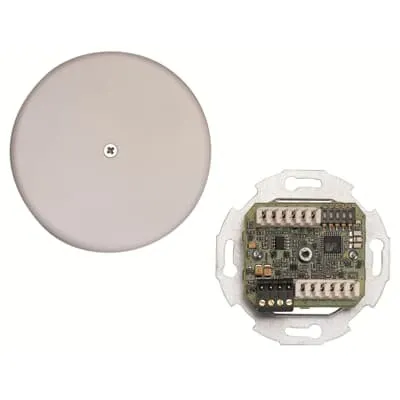

2CDG220003R0011 ABB: For expansion of the panel by 2 detector circuits. Used for connection to the exterior perimeter detectors such as magnetic reed contacts and passive glass break sensors. The module has 2 zones to which 2 detectors can be connected via LSA terminals. The module is an intelligent distributor by simple installation in a 60 mm installation box in the vicinity of the window.
Mounting Type
Flush Mounted
Degree of Protection
IP30
Data Sheet, Technical Information
Product Information (.PDF) [EN] L240xxxx
Number of Digital Inputs
0
Manual Operation
No
Number of Batteries
0
Power Loss
0.276 W
Product Net Width
20 mm
Product Net Height
80 mm
Product Net Depth / Length
80 mm
Product Net Weight
0.045 kg
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
2CDG220003R0011
ETIM 9
EC002687 - Expansion module for danger detection systems
eClass
V11.0 : 27390314
Object Classification Code
A
