2CDG230025R0011
Part Number: 2CDG230025R0011
Product Information
Extended Description

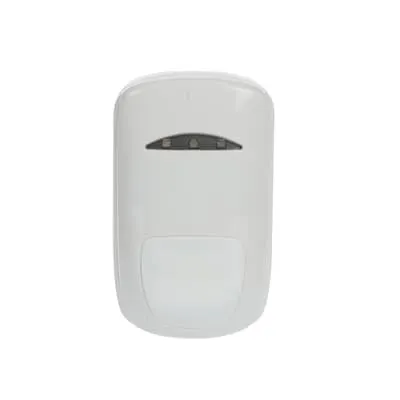

2CDG230025R0011 ABB: For direct connection to the security-bus of the Intrusion Alarm Panel GM/A 8.1 or L240. The Dual-Motion Detector combines proven passive infra-red technology with temperature-independent microwave technology. The combination of both functional principles results in a detector featuring high immunity to false alarms, even with unfavourable ambient conditions, and which still has high detection security. The detector is registered for VdS class B. It facilitates monitoring of an area with an IR range of up to 15Â m.
Instructions and Manuals
Installation and Operating Instructions (.PDF) EIM/Xx
Mounting Type
Surface Mounted
Degree of Protection
IP30
Data Sheet, Technical Information
Technical Data (.PDF) [EN] EIM/Xx
Compatible Bus Systems
S-Bus/XIB
Manual Operation
No
Number of Batteries
0
Auxiliary Voltage AC/DC
12 V DC
Power Loss
0.2 W
Product Net Width
65 mm
Product Net Height
110 mm
Product Net Depth / Length
40 mm
Product Net Weight
0.02 kg
E-Number (Switzerland)
535340231
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) EIM/XB
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) EIM/XB
ETIM 9
EC001762 - Movement detector for danger detection system
eClass
V11.0 : 27143227
Object Classification Code
A
