2CDG240019R0011
Part Number: 2CDG240019R0011
Product Information
Extended Description

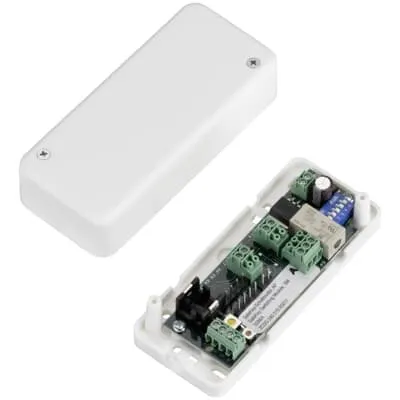

2CDG240019R0011 ABB: is used for an easy connection and evaluation of the SafeKey Wall Reader with or without keypad (WEL or WELT). Applicable for potential-free switching of electrical components up to 5Â A at a max. voltage of 12...24 V DC/AC, i.e. electrical door opener or garage doors, or to set/unset a KNX security system via the connection to a Security Terminal MT/x. The module can be used for surface mount. A 12 V power supply is required.
Power Loss
0.7 W
Number of Batteries
0
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
114 mm
Product Net Height
50 mm
Product Net Depth / Length
26 mm
Product Net Weight
0.071 kg
Package Level 1 Units
carton 1 piece
Package Level 1 Gross Weight
0.1 kg
Instructions and Manuals
Installation and Operating Instructions (.PDF) SSM/x
Data Sheet, Technical Information
Technical Data (.PDF) [EN] SSM/x
ETIM 8
EC000782 - Access control unit for bus system
ETIM 9
EC000782 - Access control unit for bus system
eClass
V11.0 : 27143141
Object Classification Code
A
