2CDG250003R0011
Part Number: 2CDG250003R0011
Product Information
Extended Description

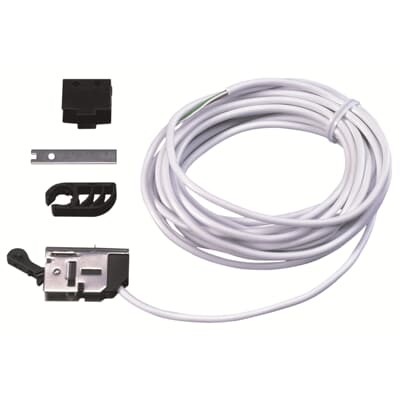

2CDG250003R0011 ABB: For installation in the strike plate. Used for lock monitoring on doors. Water-tight IP 68, with 2.5 m connection cable LIYY 3 x 0.14 mm².
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] WRK, WRKW
Wiring Diagram
Connection diagram (.JPG) [DE] WRK/W
Mounting Type
Built-in
Degree of Protection
IP67
Data Sheet, Technical Information
Technical Data (.PDF) [EN] WRKxx
Operating Principle
Mechanical
Manual Operation
No
VdS Class
Class C
Number of Batteries
0
Voltage Range
10 ... 30 V DC
Maximum Switching Current
0.3 A
Power Loss
0 W
Product Net Width
8.25 mm
Product Net Height
43.7 mm
Product Net Depth / Length
18 mm
Product Net Weight
0.02 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] WRK/W
E-Number (Switzerland)
961822103
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) WRK/W
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) WRK/W
ETIM 9
EC001759 - Detector for locking surveillance
eClass
V11.0 : 27143230
Object Classification Code
A
