2CDG250006R0011
Part Number: 2CDG250006R0011
Product Information
Extended Description

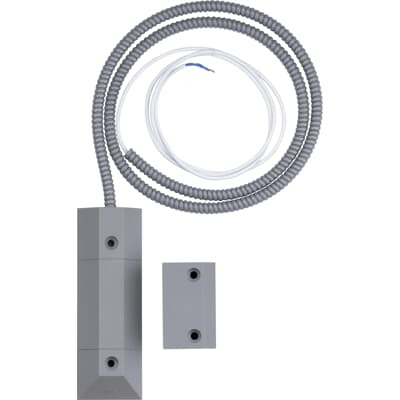

2CDG250006R0011 ABB: The reed contact for rolling doors is mounted mainly on rolling, sliding and tilting doors. The contact housing is mounted on the ground (a flat support surface is required). Only screws made of anti-magnetic material are allowed to be used for mounting. Due to the weatherproof and mechanically stable design of the contact housing, the circuit is largely protected against damage when rubber-tired vehicles drive over it. The 4-wire cable is protected by a plastic-coated metal hose.
Instructions and Manuals
Installation and Operating Instructions (.PDF) MC-C1.1
Wiring Diagram
Connection diagram (.JPG) [DE] MC-C 1.1
Mounting Type
Surface Mounted
Degree of Protection
IP67
Data Sheet, Technical Information
Technical Data (.PDF) [EN] MC-C1.1
Number of Digital Inputs
0
Manual Operation
No
Number of Batteries
0
Voltage Range
10 ... 30 V DC
Power Loss
0 W
Color
grey
Product Net Width
50 mm
Product Net Height
16.5 mm
Product Net Depth / Length
146 mm
Product Net Weight
0.29 kg
Dimension Diagram
9AKK108464A0857
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) MC-C1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) MC-C1.1
ETIM 9
EC001761 - Opening detector for danger detection system
eClass
V11.0 : 27390312
