2CDG260001R0011
Part Number: 2CDG260001R0011
Product Information
Extended Description

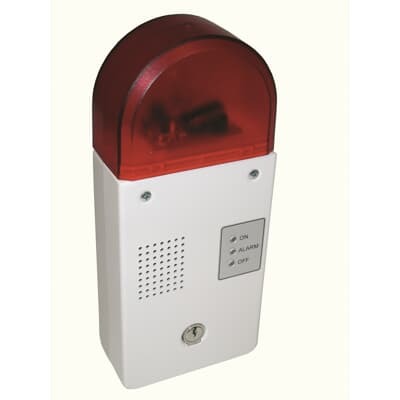

2CDG260001R0011 ABB: Profile cylinder for escape door surveilance and day alert
Instructions and Manuals
Technical Data (.PDF) [DE] TA2
Wiring Diagram
Connection diagram (.JPG) [DE] TA2
Mounting Type
Surface Mounted
Degree of Protection
IP30
Data Sheet, Technical Information
Technical Data (.PDF) [DE] TA2
Number of Outputs
4
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 2
Manual Operation
Yes
Number of Batteries
0
Auxiliary Voltage AC/DC
230 V AC
Output Voltage (Uout)
12 V DC
Maximum Switching Current
0.8 A
Power Loss
4 W
Color
white
Product Net Width
110 mm
Product Net Height
255 mm
Product Net Depth / Length
65 mm
Product Net Weight
1.112 kg
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) TA2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) TA2
ETIM 9
EC000195 - Optical/acoustic signal device
eClass
V11.0 : 27143234
Object Classification Code
A
