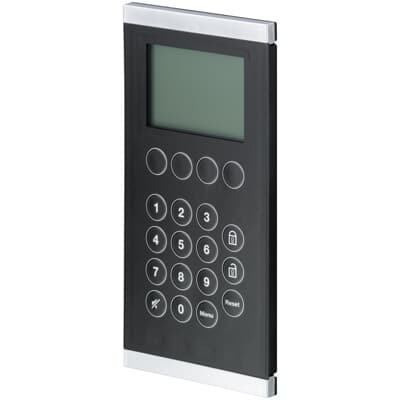

2CDG280001R0011
Part Number: 2CDG280001R0011
Product Information
Extended Description
2CDG280001R0011 ABB: used to operate and display the information of the system states of the GM/A 8.1 KNX Security Panel. System messages are displayed on a four-line LCD display. The multifunction and special keys mean that all the system functions can be operated easily. Safety-relevant functions are protected by a user PIN. Fife Keypads can be connected to each Security Panel. There is no need for an external voltage supply, the keypads are supplied via the Keypad-Bus. The device can be used in systems with increased system requirements according to VdS Class A, B and C, DIN VDE 0833 Level 1, 2 and 3 and EN 50131/IEC 62642 Level 1, 2 and 3.
Instructions and Manuals
Installation and Operating Instructions (.PDF) BT/A x.1
Mounting Type
Surface Mounted
Degree of Protection
IP30
Data Sheet, Technical Information
Technical Data (.PDF) [EN] BT/A x.1
Compatible Bus Systems
S-Bus/XIB
Manual Operation
Yes
Number of Batteries
0
Auxiliary Voltage AC/DC
12 V DC
Power Loss
0.9 W
Color
black
Product Net Width
118 mm
Product Net Height
237 mm
Product Net Depth / Length
24.5 mm
Product Net Weight
0.325 kg
Screen Size
4 in
E-Number (Switzerland)
405070105
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) BT/A 1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) BT/A 1.1
ETIM 9
EC001767 - Control and display device for danger detection system
eClass
V11.0 : 27390313
Object Classification Code
A
