2CDG430050R0011
Part Number: 2CDG430050R0011
Product Information
Extended Description

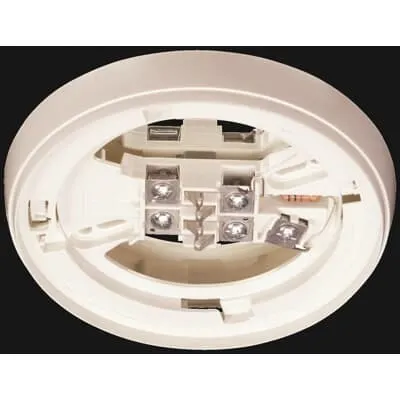

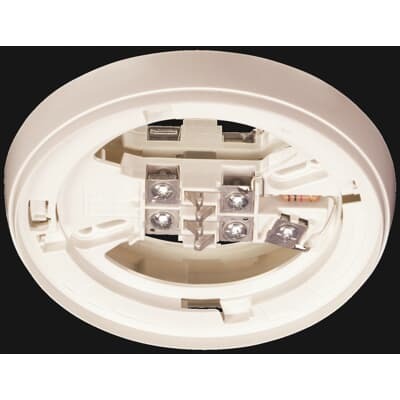

2CDG430050R0011 ABB: FC600/BR Detector Base for connecting detectors from series FC600/FC650 to Fire Alarm Panels
Auxiliary Voltage AC/DC
10 ... 30 V DC
Mounting Type
Surface Mounted
Manual Operation
No
Color
white
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Product Net Width
110 mm
Product Net Height
110 mm
Product Net Depth / Length
16 mm
Product Net Weight
0.04 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.225 kg
Instructions and Manuals
Technical Data (.PDF) [EN] FC600/BR, FC650/O, FC650/TDIFF, FC650/TMAX
Data Sheet, Technical Information
Technical Data (.PDF) [EN] FC600/BR, FC650/O, FC650/TDIFF, FC650/TMAX
ETIM 8
EC001489 - Socket for fire detector
ETIM 9
EC001489 - Base for fire detector
eClass
V11.0 : 40040109
Object Classification Code
A
