2CDG430051R0011
Part Number: 2CDG430051R0011
Product Information
Extended Description

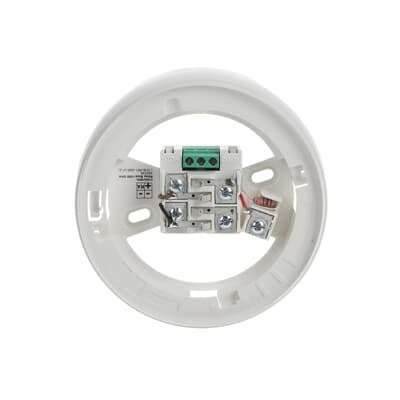

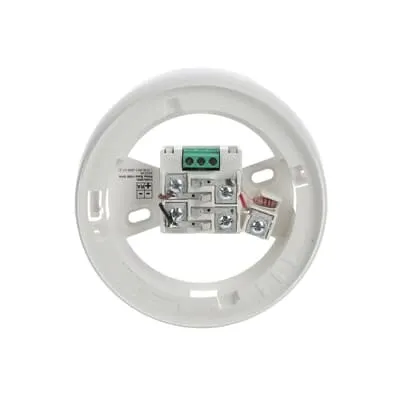

2CDG430051R0011 ABB: FC600/BREL Relay Base 12/24 V DC for connecting detectors from series FC600/FC650 to Intrusion alarm panels an KNX-Security-Components. This does not form a EN54 fire-alarm-system
Auxiliary Voltage AC/DC
10 ... 30 V DC
Maximum Switching Current
1 A
Number of Outputs
1
Mounting Type
Surface Mounted
Manual Operation
No
Color
white
RoHS Information
CE Declaration of Conformity (.PDF) FC600/BREL
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20130506
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP30
Product Net Width
110 mm
Product Net Height
110 mm
Product Net Depth / Length
27 mm
Product Net Weight
0.058 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.08 kg
E-Number (Switzerland)
961870403
Declaration of Conformity - CE
CE Declaration of Conformity (.PDF) FC600/BREL
Instructions and Manuals
Installation and Operating Instructions (.PDF) FC600/BREL
Data Sheet, Technical Information
Technical Data (.PDF) [EN] FC600/BREL
ETIM 8
EC001489 - Socket for fire detector
ETIM 9
EC001489 - Base for fire detector
eClass
V11.0 : 40040109
Object Classification Code
A
