2CDG430118R0011
Part Number: 2CDG430118R0011
Product Information
Extended Description

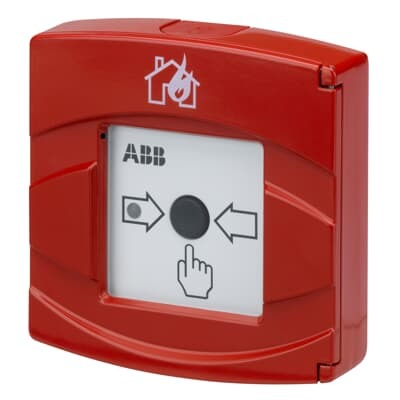

2CDG430118R0011 ABB: The Manual Call Point HFM/A 1.1 is designed for connection to a conventional DC threshold alarm detector zone. The triggering method corresponds to “type B – indirect triggering” according to EN 54-11. The Manual Call Point latches. A visual display indicates the Manual Call Point’s state. The Manual Call Point can be used as a button simply by removing the locking lever.
Voltage Range
10 ... 30 V DC
Power Loss
0 W
Number of Outputs
1
Mounting Type
Surface Mounted
Manual Operation
Yes
Number of Batteries
0
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) HFM/A 1.1
RoHS Status
Following EU Directive 2011/65/EU
RoHS Date
20200923
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP43
Product Net Width
126 mm
Product Net Height
126 mm
Product Net Depth / Length
35 mm
Product Net Weight
0.42 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.5 kg
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) HFM/A 1.1
Instructions and Manuals
Installation and Operating Instructions (.PDF) HFM/A 1.1
Data Sheet, Technical Information
Technical Data (.PDF) [EN] HFM/A1.1
ETIM 8
EC001765 - Non-automatic detector for danger detection system
ETIM 9
EC001765 - Manual call point for danger detection system
eClass
V11.0 : 27143229
