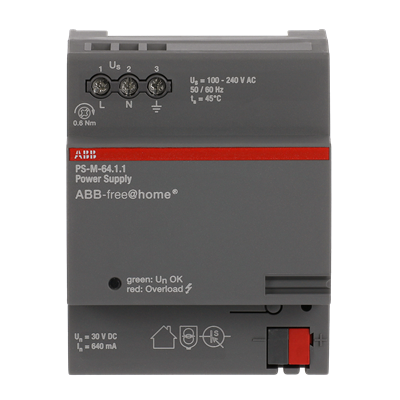

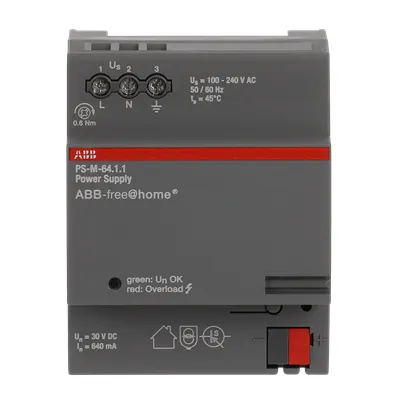

2CDG510001R0011
Part Number: 2CDG510001R0011
Product Information
Extended Description
2CDG510001R0011 ABB: Free@home power supply generate and monitor the system voltage (SELV). The bus line is decoupled from the power supply by an integrated choke. The voltage output is short-circuit and overload protected. The two-color LED indicates device output status. The power suppliehas a wide range input from 85…265 V AC, 50/60 Hz.
Instructions and Manuals
Product Manual (.PDF) [EN] PS-M-64.1.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Product Manual (.PDF) [EN] PS-M-64.1.1
Number of Outputs
1
Number of LEDs
1
Number of Integrated Chokes
1
Number of Supplied Lines
1
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Manual Operation
No
Number of Batteries
0
Voltage Range
110 ... 230 V AC
Buffer Voltage
No
Output Current Maximum (Iout)
0.64 A
Power Loss
9 W
Color
grey
Width in Number of Modular Spacings
4.0
Product Net Width
72 mm
Product Net Height
90 mm
Product Net Depth / Length
64.5 mm
Product Net Weight
0.26 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815496
E-Number (Norway)
4549601
E-Number (Sweden)
1701117
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) PS-M-64.1.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report SV/S30.x.y.1
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) PS-M-64.1.1
ETIM 9
EC000675 - Power supply for bus system
eClass
V11.0 : 27143114
UNSPSC
39121004
IDEA Granular Category Code (IGCC)
4127 >> Power supply units
Object Classification Code
A
