2CDG510003R0011
Part Number: 2CDG510003R0011
Product Information
Extended Description

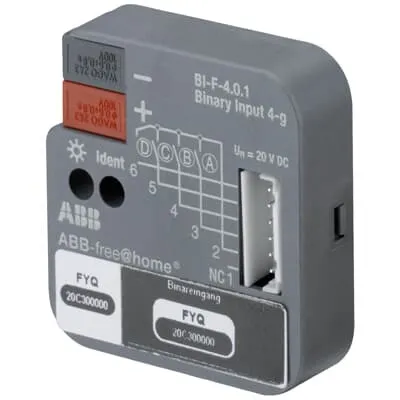

2CDG510003R0011 ABB: 4 channels can be connected with conventional push-buttons or auxiliary contacts. The information of contact scanning can be used to control free@home actuators or for indicate status inforamtion. The contact scanning voltage are made available by binary input device. The devices are supplied by free@home bus, there is no additional power supply neccessary. The compact design allows the installation of conventionell 60 mm installation box or device box.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [14S] BI-F-4.0.1
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Installation and Operating Instructions (.PDF) [14S] BI-F-4.0.1
Number of LEDs
1
Number of Digital Inputs
4
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Manual Operation
No
Number of Batteries
0
Input Voltage (Uin)
20 V
Input Voltage Type
Pulsed
Power Loss
1.6 W
Color
grey
Product Net Width
39 mm
Product Net Height
12 mm
Product Net Depth / Length
40 mm
Product Net Weight
0.044 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] US/U X.3
E-Number (Finland)
2815524
E-Number (Norway)
4549617
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) BI-F-4.0.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
87401064-b528-4b2c-b2eb-7d74cd853bd4 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report US/Ux.2 & BI-F-x.0.1
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) BI-F-4.0.1
ETIM 9
EC000688 - Binary input for bus system
eClass
V11.0 : 27143121
Object Classification Code
A
