2CDG510005R0011
Part Number: 2CDG510005R0011
Product Information
Extended Description

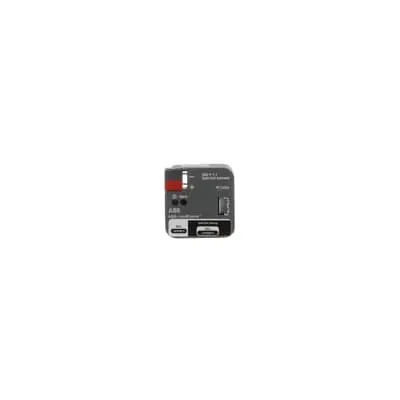

2CDG510005R0011 ABB: The device is used to interface between the free@home system and many manufacturers’ air conditioners, so-called split units. The device converts the free@home telegrams into infrared commands and transmits them to the split unit. The transmitter of the supplied cable is bonded directly onto the split unit’s receiver. The split unit then no longer receives the commands from a remote control. Instead, it can be operated via any free@home sensors. The model of the split unit can be selected during commissioning. Auxiliary voltage is not required.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] SUG-F-1.x1
Wiring Diagram
Connection diagram (.JPG) [DE] SUG-F-1.x1
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Product Manual (.PDF) [RU] SUG-F-1.1
Number of LEDs
1
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Software Updateable
Yes
Integrated Webserver
No
Manual Operation
No
Number of Batteries
0
Voltage Range
10 ... 30 V DC
Input Voltage (Uin)
24 V DC
Power Loss
0.4 W
Color
grey
Product Net Width
12 mm
Product Net Height
39 mm
Product Net Depth / Length
40 mm
Product Net Weight
0.02 kg
Dimension Diagram
Dimension drawing (.JPG) [EN] SUG/U 1.1
E-Number (Finland)
2815663
E-Number (Norway)
4549795
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [EN] SUG-F-1.x1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
ef12cd48-7f5f-4a3d-9d89-b2af13bde742 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [EN] SUG-F-1.x1
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
