2CDG510011R0011
Part Number: 2CDG510011R0011
Product Information
Extended Description

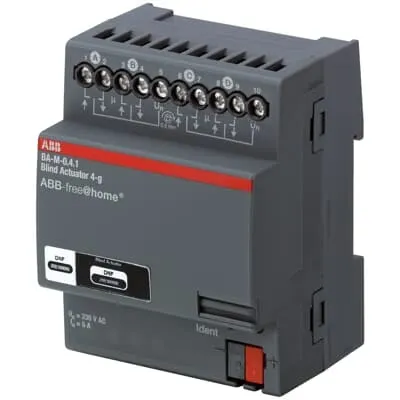

2CDG510011R0011 ABB: BA-M-0.4.1 Blind Actuator, 4-fold, 230 V, MDRC
Instructions and Manuals
Installation and Operating Instructions (.PDF) [14S] BI-F-2.0.1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Installation and Operating Instructions (.PDF) [14S] BI-F-2.0.1
Special Functions
Switching
Number of Outputs
4
Number of LEDs
1
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Manual Operation
No
Number of Batteries
0
Current Type
AC/DC
Output Voltage (Uout)
230 V AC
Maximum Switching Current
6 A
Maximum Switching Power
1200 W
Power Loss
0.25 W
Color
grey
Width in Number of Modular Spacings
4.0
Product Net Width
80 mm
Product Net Height
70 mm
Product Net Depth / Length
95 mm
Product Net Weight
0.22 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
Replacement Product ID (NEW)
2CDG510028R0011
E-Number (Finland)
2815523
E-Number (Sweden)
1701113
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) BA-M-0.4.1
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20231212
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report JRA/Sx.y.z.1 & BA-M-0.4.1
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) BA-M-0.4.1
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
Object Classification Code
A
