2CDG510012R0021
Part Number: 2CDG510012R0021
Product Information
Extended Description

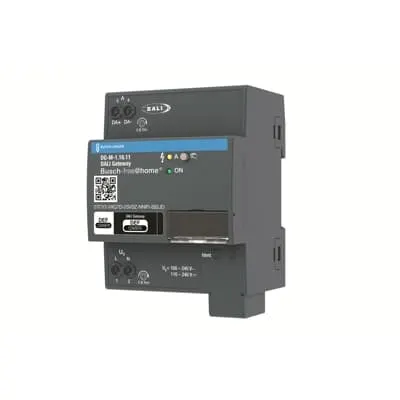

2CDG510012R0021 ABB: DALI gateway MDRC for ABB-free@home.
For controlling DALI devices via free@home.
One DALI output for max. 16 DALI devices.
Supports the control of DT=, DT6 and DT8 (color temperature Tc & RGB(W) according to EN 62386-209).
Integrated DALI power supply for the DALI devices.
Each DALI device can be controlled separately or via free@home groups and scenes.
Staircase lighting, blocking and forced functions are available.
For single master operation.
Commissioning is carried out via the free@home user interface.
DALI addressing is automatic.
Programming only when bus voltage is applied via the web interface of the System Access Point.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [EN] DG-M-1.16.1(1)
Wiring Diagram
Connection diagram (.JPG) [DE] DG-M-1.16.x1
Mounting Type
DIN-Rail
Ambient Air Temperature
Operation -5 ... +45 °C
Degree of Protection
IP20
Data Sheet, Technical Information
Product Manual (.PDF) [EN] DG-M-1.16.11
Communication Interface
DALI
Number of Outputs
1
Number of LEDs
2
Compatible Bus Systems
DALI | free@home (TP)
Product Range
free@home
Software Updateable
Yes
Manual Operation
No
Number of Batteries
0
Auxiliary Voltage AC/DC
100 ... 240 V AC
Input Voltage (Uin)
85 ... 264 V AC
Power Loss
2 W
Color
grey
Width in Number of Modular Spacings
4.0
Product Net Width
70 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.133 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) [EN] DG-M-1.16.1(1)
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
CB Certificate
Certificate (.PDF) [EN] CB Report DG/S x.64.x.1
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) [EN] DG-M-1.16.1(1)
ETIM 9
EC001099 - System interface/media gateway for bus system
eClass
V11.0 : 27143136
UNSPSC
43222605
IDEA Granular Category Code (IGCC)
6809 >> System interface/media gateway for bus system
