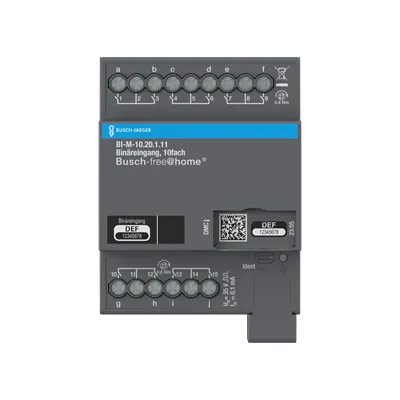

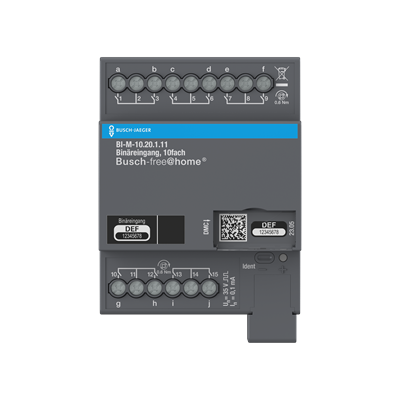

2CDG510015R0021
Part Number: 2CDG510015R0021
Product Information
Extended Description
2CDG510015R0021 ABB: Scans floating contacts with internally generated scanning voltage. No external Voltage needed. The binary inputs enable detection of independent input signals. Each channel can be connected with conventional push-buttons or auxiliary contacts. The information can be used to control free@home actuators or to indicate status information. The devices are powered via the free@home bus and do not require an additional power supply.
Mounting Type
DIN-Rail
Degree of Protection
IP20
Number of LEDs
1
Number of Digital Inputs
10
Number of Inputs
Analog (0 ... 10 V / 4 ... 20 mA) 10
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Manual Operation
No
Terminal Type
Bus Connection
Input Voltage (Uin)
35 V
Input Voltage Type
Pulsed
Power Loss
0.25 W
Color
grey
Width in Number of Modular Spacings
4.0
Product Net Width
90 mm
Product Net Height
63.5 mm
Product Net Depth / Length
70 mm
Product Net Weight
0.1 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
ETIM 9
EC000688 - Binary input for bus system
eClass
V11.0 : 27143121
