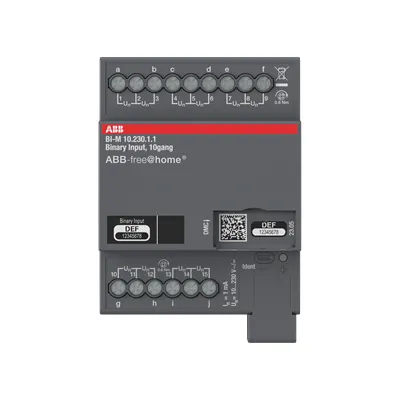

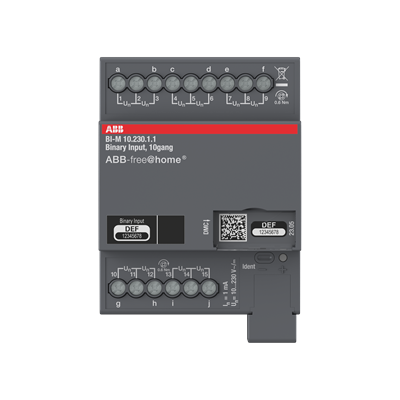

2CDG510017R0011
Part Number: 2CDG510017R0011
Product Information
Extended Description
2CDG510017R0011 ABB: Detects AC/DC signals in the voltage range from 10...230 V. The binary inputs enable detection of independent input signals. Each channel can be connected with conventional push-buttons or auxiliary contacts. The information can be used to control free@home actuators or to indicate status information. The devices are powered via the free@home bus and do not require an additional power supply.
Mounting Type
DIN-Rail
Degree of Protection
IP20
Number of LEDs
1
Number of Inputs
10
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Transmission Standard
Twisted Pair Wiring
Manual Operation
No
Terminal Type
Bus Connection
Voltage Range
10 ... 230 V AC/DC
Input Voltage (Uin)
10 ... 230 V
Input Voltage Type
AC/DC
Power Loss
0.25 W
Color
grey
Width in Number of Modular Spacings
4.0
Product Net Width
90 mm
Product Net Height
63.5 mm
Product Net Depth / Length
70 mm
Product Net Weight
0.1 kg
Built-In Depth (t2)
64.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
E-Number (Finland)
2815933
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
ETIM 9
EC000688 - Binary input for bus system
eClass
V11.0 : 27143121
