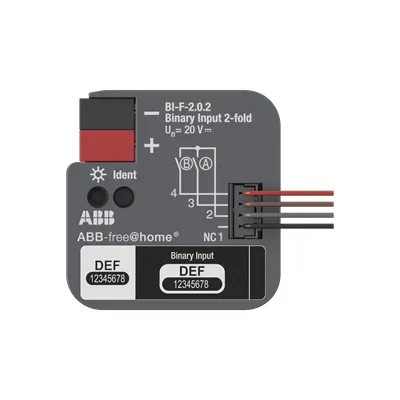

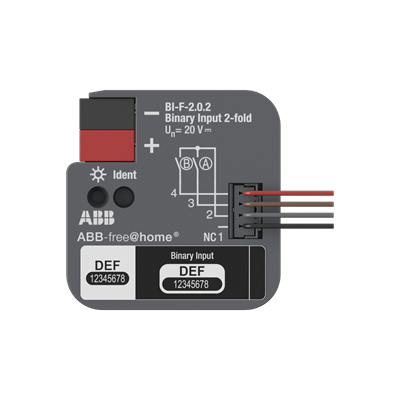

2CDG510023R0011
Part Number: 2CDG510023R0011
Product Information
Extended Description
2CDG510023R0011 ABB: 2 channels can be connected with conventional push-buttons or auxiliary contacts. The information of contact scanning can be used to control free@home actuators or for indicate status information. The contact scanning voltage are made available by binary input device. The devices are supplied by free@home bus, there is no additional power supply neccessary. The compact design allows the installation of conventionell 60 mm installation box or device box.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [XX] BI-F-2.0.x2 / BI-F-4.0.x2
Mounting Type
Flush Mounted
Degree of Protection
IP20
Data Sheet, Technical Information
Technical data (.PDF) [RU] BI-F-x.0.2
Sub-Function
LED controlling
Number of Inputs
2 | Analog (0 ... 10 V / 4 ... 20 mA) 2
Number of Input Channels
2
Number of Output Channels
2
Compatible Bus Systems
free@home (TP)
Manual Operation
No
Suitable for C-Load
No
Number of Batteries
0
Input Voltage Type
Pulsed
Power Loss
0.25 W
Color
grey
Product Net Width
39 mm
Product Net Height
12 mm
Product Net Depth / Length
40 mm
Product Net Weight
0.043 kg
Dimension Diagram
Dimensional Drawing (.SVG) [XX] US/U X.3
E-Number (Finland)
2815947
RoHS Information
EU-Declaration of conformity (.PDF) [EN] BI-F-2.0.2
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Cyber Security Software Support Period
2 year
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] BI-F-2.0.2
ETIM 9
EC001584 - I/O device for bus system
eClass
V11.0 : 27143145
Object Classification Code
A
