2CDG510026R0021
Part Number: 2CDG510026R0021
Product Information
Extended Description

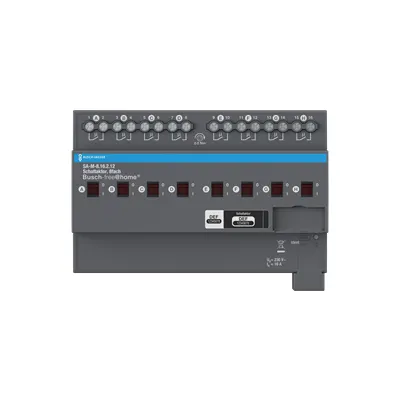

2CDG510026R0021 ABB: For switching 8 independent 127 V~/230 V~ loads. Each contact has a manual operation function independent of auxiliary voltage for additionally displaying the contact setting. The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [DE, EN, FR, IT, NL, PL, RU] SA-M-x.16.2.x2
Instructions and Manuals (Part 2)
Installation and Operating Instructions (.PDF) [DA, ES, FI, NO, PT, SV, ZH] SA-M-x.16.2.x2
Wiring Diagram
Connection diagram (.SVG) [XX] SA-M-8.x.2.x2
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical data (.PDF) [NL] SA-M-x.16.2.12
Contact Position Indication
ON / OFF
Number of Outputs
8
Number of LEDs
1
Maximum Number of Switching Outputs
8
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Manual Operation
Yes
Suitable for C-Load
No
Number of Batteries
0
Voltage Range
230 V AC
Output Voltage (Uout)
230 V AC
Rated Current (In)
16 A
Maximum Switching Current
16 A
Maximum Switching Power
2500 W
Power Loss
8 W
Color
grey
Width in Number of Modular Spacings
8.0
Product Net Width
140 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.406 kg
Built-In Depth (t2)
63.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 8MW
EcoSolutions Profile
EcoSolution Product Profile (.PDF) [EN] ABB-free@home® Switch Actuators SA-M
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 33.6 %
Circular Design Principles Lifetime
Declaration KNX (.PDF) [EN] Declaration lifetime KNX products ABB
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Extended Product Lifetime
Product Durability | Product Modularity | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] SA/S 8.x.2.2 & SA-M-8.x.2.x2
RoHS Information
RoHS Declaration of Conformity (.PDF) [EN,DE] SA-M-8.16.2.12
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
EU-Declaration of conformity (.PDF) [EN] SA-M-8.16.2.12
ETIM 9
EC001097 - Switch actuator for bus system
eClass
V11.0 : 27143125
UNSPSC
31251516
IDEA Granular Category Code (IGCC)
3268 >> Switch actuator
