2CDG510028R0021
Part Number: 2CDG510028R0021
Product Information
Extended Description

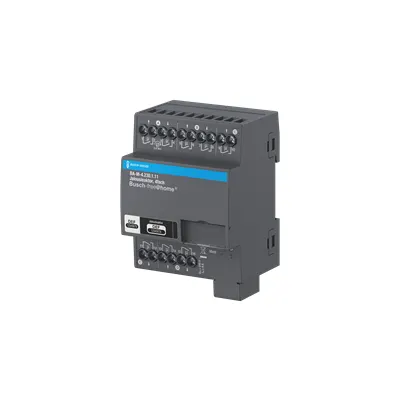

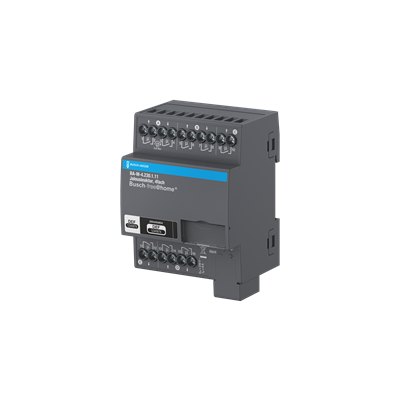

2CDG510028R0021 ABB: For controlling 4 independent blind or roller shutter drives. The bus can be connected via enclosed terminal block.
Instructions and Manuals
Installation and Operating Instructions (.PDF) [DE, EN, FR, IT, NL, PL, RU] BA-M-x.230.1.x1
Instructions and Manuals (Part 2)
Installation and Operating Instructions (.PDF) [DA, ES, FI, NO, PT, SV, ZH] BA-M-x.230.1.x1
Wiring Diagram
Connection diagram (.SVG) [XX] BA-M-4.230.1.x1
Mounting Type
DIN-Rail
Degree of Protection
IP20
Data Sheet, Technical Information
Technical data (.PDF) [NL] BA-M-x.230.1.11
Special Functions
Switching
Number of Outputs
4
Number of LEDs
1
Compatible Bus Systems
free@home (TP)
Product Range
free@home
Manual Operation
No
Number of Batteries
0
Current Type
AC/DC
Voltage Range
110 ... 230 V AC
Output Voltage (Uout)
230 V AC
Rated Current (In)
6 A
Maximum Switching Current
6 A
Maximum Switching Power
1200 W
Power Loss
1.5 W
Color
grey
Width in Number of Modular Spacings
4.0
Product Net Width
70 mm
Product Net Height
90 mm
Product Net Depth / Length
63.5 mm
Product Net Weight
0.272 kg
Built-In Depth (t2)
63.5 mm
Dimension Diagram
Dimensional Drawing (.SVG) [XX] Neutral for products with 4MW
EcoSolutions Profile
EcoSolution Product Profile (.PDF) [EN] ABB-free@home® Blind Actuators BA-M
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 32.5 %
Circular Design Principles Lifetime
Declaration KNX (.PDF) [EN] Declaration lifetime KNX products BJE
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Extended Product Lifetime
Product Durability | Product Modularity | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services
Offered with Takeback Services
Take Back for Recycling
Environmental Product Declaration - EPD
Environmental Product Declaration (.PDF) [EN] BA-M4.230.1.x1
RoHS Information
RoHS Declaration of Conformity (.PDF) [EN,DE] BA-M-4.230.1.11
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) BA-M-4.230.1.x1
ETIM 9
EC001330 - Shutting actuator for bus system
eClass
V11.0 : 27143128
