2CDG924003R0011
Part Number: 2CDG924003R0011
Product Information
Extended Description

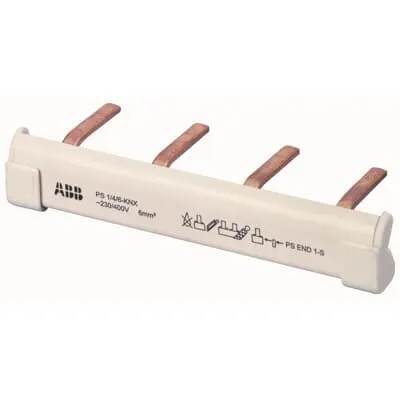

2CDG924003R0011 ABB: The busbars reduce the wiring effort for ABB i-bus® modular installation devices. Different load circuits can be supplied from a common source using the busbar.The busbars are suitable for 6 sqmm terminals in the ABB i-bus® range, such as those installed in the 10 A and 16 A SA/S ABB i-bus® Switch Actuators, Switch/Dim Actuators SD/S x.16.1 or Light Controller LR/S 4.16.1.
Instructions and Manuals
Technical Data (.PDF) [EN] PS1/xxxxxxxx
Mounting Type
Accessory
Data Sheet, Technical Information
Technical Data (.PDF) [EN] PS1/xxxxxxxx
Number of Poles
4P
Number of Phases
1
Number of Mountable Devices
1
Product Range
KNX
Connection Type
Pin
Manual Operation
No
Number of Batteries
0
Rated Cross-Section
6 mm²
Rated Operational Voltage
Maximum 400 V
Operational Voltage
Maximum (Incl. Tolerance) 400 V AC
Voltage Protection Level ( Up)
4 kV
Rated Impulse Withstand Voltage (Uimp)
4 kV
Rated Short-time Withstand Current Low Voltage (Icw)
25 kA
Rated Conditional Short-Circuit Current (Inc)
25 kA
Rated Uninterrupted Current (Iu)
40 A
Power Loss
0 W
Color
white
Width in Number of Modular Spacings
4.0
Product Net Width
62 mm
Product Net Height
17 mm
Product Net Depth / Length
62 mm
Product Net Weight
0.007 kg
Dimension Diagram
Dimensional Drawing (.EPS) [XX] PS1/4/6-KNX
E-Number (Finland)
2815317
E-Number (Norway)
4544227
E-Number (Sweden)
1750081
E-Number (Switzerland)
405950305
RoHS Information
CE & RoHS Declaration of Conformity (.PDF) PS1/xxxxxxxx
RoHS Status
Following EU Directive 2011/65/EU
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240123
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Declaration of Conformity - CE
CE & RoHS Declaration of Conformity (.PDF) PS1/xxxxxxxx
ETIM 9
EC000215 - Phase busbar
eClass
V11.0 : 27371306
UNSPSC
39121117
IDEA Granular Category Code (IGCC)
4375 >> Buss bar
Object Classification Code
A
