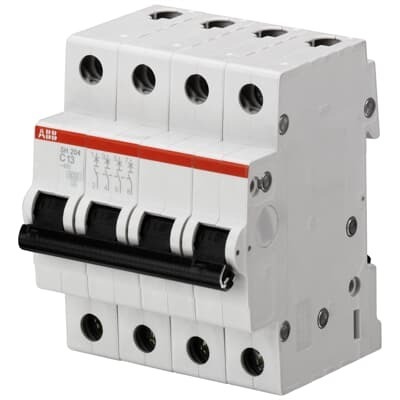

2CDS214001R0084
Part Number: 2CDS214001R0084
Product Information
Extended Description
2CDS214001R0084 ABB: Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C),
configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.
Tripping Characteristic
C
Rated Operational Voltage
acc. to IEC 60898-1 400 V
Operational Voltage
Maximum (Incl. Tolerance) 440 V AC | Minimum 12 V AC
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)
4 kV | at 2000 m 5 kV | at Sea Level 6.2 kV
Dielectric Test Voltage
50/60 Hz-1 min: 2 kV
Input Voltage Type
AC
Rated Current (In)
8 A
Rated Short-Circuit Capacity
(AC) 6 kA | (400 V AC) 6 kA | (400 V) 6 kA
Rated Conditional Short-Circuit Current (Inc)
(230 V) 6 kA | (400 V) 6 kA
Rated Frequency (f)
50 / 60 Hz
Power Loss
6 W | at Rated Operating Conditions per Pole 1.5 W
Power Supply Connection
Arbitrary
Contact Position Indication
ON / OFF
Energy Limiting Class
3
Electrical Endurance
20000 AC cycle
Mechanical Endurance
20000 cycle
Number of Protected Poles
4
Number of Poles
4P
Overvoltage Category
III
Tightening Torque
2 N·m
Actuator Type
Toggle
Screw Terminal Type
Cage Terminal
Actuator Marking
I / O
Actuator Material
Insulation Group II, Black, Sealable
Housing Material
Insulation Group II, RAL 7035
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position
any
Recommended Screw Driver
Pozidriv 2
Accessories Available
No
Connecting Capacity
Conductor 25 / 25 mm² | Flexible with Ferrule 0.75 ... 16 mm² | Flexible 0.75 ... 16 mm² | Rigid 0.75 ... 25 mm² | Stranded 0.75 ... 25 mm²
Installation Size
acc. to DIN 43880 1
Terminal Type
Screw Terminals
RoHS Information
2CDK400030D0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
0335
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240821
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +70 °C
Reference Ambient Air Temperature
30 °C
Degree of Protection
IP20 | Enclosure with Cover IP40
Pollution Degree
2
Environmental Conditions
28 cycles | with 55 °C / 90-96 % | and 25 °C / 95-100 %
Resistance to Vibrations
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27
25g 2 shocks 13 ms
Environmental Information
2CDK400030D0201
Width in Number of Modular Spacings
4.0
Product Net Width
70 mm
Product Net Height
85 mm
Product Net Depth / Length
69 mm
Product Net Weight
0.5 kg
Pole Net Weight
0.115 kg
Built-In Depth (t2)
69 mm
Package Level 1 Units
carton 1 piece
Package Level 1 Gross Weight
0.51 kg
Declaration of Conformity - CE
EU Declaration of Conformity SH200_SH200M_SH200T_SH200L
Instructions and Manuals
MCB - general mounting instruction
Data Sheet, Technical Information
Compact Home Protection and comfort system for your home
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
UNSPSC
39121603
eClass
V11.0 : 27141901
IDEA Granular Category Code (IGCC)
4897 >> Miniature circuit breakers
Object Classification Code
F
Standards
IEC/EN 60898-1
Certification Agency
EN | IEC
