Part Number: 2CDS214001R0634
Product Information
Extended Description

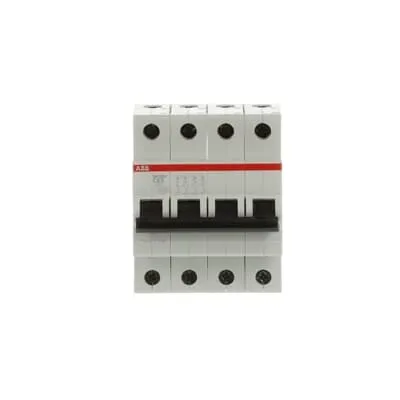

2CDS214001R0634 ABB: SH204-C63 Miniature Circuit Breaker - 4P - C - 63 A
Environmental Product Declaration - EPD
EPD HOME MCB 0.5A to 63A | PEP ABBG-00339-V01.01-EN.pdf
Tripping Characteristic
C
Rated Operational Voltage
acc. to IEC 60898-1 400 V
Operational Voltage
Maximum (Incl. Tolerance) 440 V AC | Minimum 12 V AC
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)
4 kV | at 2000 m 5 kV | at Sea Level 6.2 kV
Dielectric Test Voltage
50/60 Hz-1 min: 2 kV
Input Voltage Type
AC
Rated Current (In)
63 A
Rated Short-Circuit Capacity
(AC) 6 kA | (400 V AC) 6 kA | (400 V) 6 kA
Rated Conditional Short-Circuit Current (Inc)
(230 V) 6 kA | (400 V) 6 kA
Rated Frequency (f)
50 / 60 Hz
Power Loss
19.2 W | at Rated Operating Conditions per Pole 4.8 W
Power Supply Connection
Arbitrary
Contact Position Indication
ON / OFF
Energy Limiting Class
3
Electrical Endurance
10000 AC cycle
Mechanical Endurance
20000 cycle
Number of Protected Poles
4
Number of Poles
4P
Overvoltage Category
III
Tightening Torque
2 N·m
Actuator Type
Toggle
Screw Terminal Type
Cage Terminal
Actuator Marking
I / O
Actuator Material
Insulation Group II, Black, Sealable
Housing Material
Insulation Group II, RAL 7035
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position
any
Recommended Screw Driver
Pozidriv 2
Accessories Available
No
Connecting Capacity
Conductor 25 / 25 mm² | Flexible with Ferrule 0.75 ... 16 mm² | Flexible 0.75 ... 16 mm² | Rigid 0.75 ... 25 mm² | Stranded 0.75 ... 25 mm²
Installation Size
acc. to DIN 43880 1
Terminal Type
Screw Terminals
RoHS Information
2CDK400030D0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
0335
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240821
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +70 °C
Reference Ambient Air Temperature
30 °C
Degree of Protection
IP20 | Enclosure with Cover IP40
Pollution Degree
2
Environmental Conditions
28 cycles | with 55 °C / 90-96 % | and 25 °C / 95-100 %
Resistance to Vibrations
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27
25g 2 shocks 13 ms
Environmental Information
2CDK400030D0201
Width in Number of Modular Spacings
4.0
Product Net Width
70 mm
Product Net Height
85 mm
Product Net Depth / Length
69 mm
Product Net Weight
0.5 kg
Pole Net Weight
0.115 kg
Built-In Depth (t2)
69 mm
Package Level 1 Units
carton 1 piece
Package Level 1 Gross Weight
0.51 kg
Declaration of Conformity - CE
EU Declaration of Conformity SH200_SH200M_SH200T_SH200L
Instructions and Manuals
MCB - general mounting instruction
Data Sheet, Technical Information
Compact Home Protection and comfort system for your home
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
UNSPSC
39121603
eClass
V11.0 : 27141901
IDEA Granular Category Code (IGCC)
4897 >> Miniature circuit breakers
Object Classification Code
F
Standards
IEC/EN 60898-1
Certification Agency
EN | IEC
