2CDS233070R0164
Part Number: 2CDS233070R0164
Product Information
Extended Description

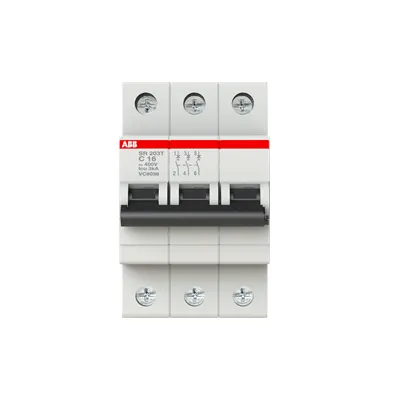

2CDS233070R0164 ABB: SR203T-C16 is part of SR200T range. SR200T has two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in C-characteristic, different pole configurations and rated currents up to 63A. All MCBs of the product range SR200T achive a breaking capacity of 3kA and comply with SANS 556-1 and SNS IEC 60947-2.
Environmental Product Declaration - EPD
EPD HOME MCB 0.5A to 63A
Tripping Characteristic
C
Rated Operational Voltage
acc. to IEC 60898-1 400 V | acc. to IEC 60947-2 400 V
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)
4 kV
Input Voltage Type
AC
Rated Current (In)
16 A
Rated Short-Circuit Capacity
(400 V AC) 3 kA | (400 V) 3 kA
Rated Conditional Short-Circuit Current (Inc)
(230 V) 3 kA | (400 V) 3 kA
Rated Service Short-Circuit Breaking Capacity (Ics)
(230 V AC) 3 kA
Rated Frequency (f)
50 / 60 Hz
Power Loss
at Rated Operating Conditions per Pole 2.5 W
Contact Position Indication
ON / OFF
Energy Limiting Class
3
Electrical Endurance
20000 AC cycle
Mechanical Endurance
20000 cycle
Number of Protected Poles
3
Number of Poles
3P
Overvoltage Category
III
Actuator Type
Toggle
Actuator Marking
I / O
Actuator Material
Insulation Group II, Black, Sealable
Accessories Available
Yes
Connecting Capacity
Flexible with Ferrule 0.75 ... 25 mm² | Flexible 0.75 ... 25 mm² | Rigid 0.75 ... 25 mm² | Stranded 0.75 ... 25 mm²
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240821
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e5b28e44-26b6-4c6d-bcd0-68cb89b3baf3 Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +70 °C
Degree of Protection
IP20 | Enclosure with Cover IP40
Pollution Degree
2
Environmental Conditions
28 cycles | with 55 °C / 90-96 % | and 25 °C / 95-100 %
Environmental Information
2CDK400030D0201
Width in Number of Modular Spacings
3.0
Product Net Width
52.5 mm
Product Net Height
85 mm
Product Net Depth / Length
69 mm
Product Net Weight
0.375 kg
Pole Net Weight
0.125 kg
Built-In Depth (t2)
69 mm
Package Level 1 Units
carton 1 piece
Package Level 1 Gross Weight
0.39 kg
Instructions and Manuals
MCB - general mounting instruction
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
UNSPSC
39121603
eClass
V11.0 : 27141901
IDEA Granular Category Code (IGCC)
4897 >> Miniature circuit breakers
