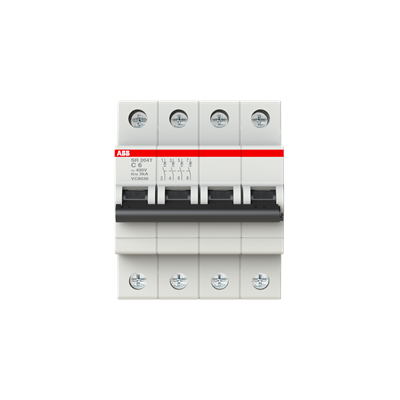

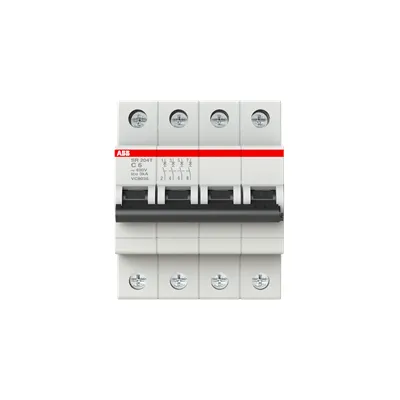

2CDS234070R0064
Part Number: 2CDS234070R0064
Product Information
Extended Description
2CDS234070R0064 ABB: SR204T-C6 is part of SR200T range. SR200T has two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in C-characteristic, different pole configurations and rated currents up to 63A. All MCBs of the product range SR200T achive a breaking capacity of 3kA and comply with SANS 556-1 and SNS IEC 60947-2.
Tripping Characteristic
C
Rated Operational Voltage
acc. to IEC 60898-1 400 V | acc. to IEC 60947-2 400 V
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)
4 kV
Input Voltage Type
AC
Rated Current (In)
6 A
Rated Short-Circuit Capacity
(400 V AC) 3 kA | (400 V) 3 kA
Rated Conditional Short-Circuit Current (Inc)
(230 V) 3 kA | (400 V) 3 kA
Rated Service Short-Circuit Breaking Capacity (Ics)
(230 V AC) 3 kA
Rated Frequency (f)
50 / 60 Hz
Power Loss
at Rated Operating Conditions per Pole 2 W
Contact Position Indication
ON / OFF
Energy Limiting Class
3
Electrical Endurance
10000 AC cycle
Mechanical Endurance
20000 cycle
Number of Protected Poles
4
Number of Poles
4P
Overvoltage Category
III
Actuator Type
Toggle
Actuator Marking
I / O
Actuator Material
Insulation Group II, Black, Sealable
Accessories Available
Yes
Connecting Capacity
Flexible with Ferrule 0.75 ... 25 mm² | Flexible 0.75 ... 25 mm² | Rigid 0.75 ... 25 mm² | Stranded 0.75 ... 25 mm²
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240821
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Ambient Air Temperature
Operation -25 ... +55 °C | Storage -40 ... +70 °C
Degree of Protection
IP20 | Enclosure with Cover IP40
Pollution Degree
2
Environmental Conditions
28 cycles | with 55 °C / 90-96 % | and 25 °C / 95-100 %
Environmental Information
2CDK400030D0201
Width in Number of Modular Spacings
4.0
Product Net Width
70 mm
Product Net Height
85 mm
Product Net Depth / Length
69 mm
Product Net Weight
0.5 kg
Built-In Depth (t2)
69 mm
Package Level 1 Units
carton 1 piece
Package Level 1 Gross Weight
0.51 kg
Instructions and Manuals
MCB - general mounting instruction
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
UNSPSC
39121603
eClass
V11.0 : 27141901
IDEA Granular Category Code (IGCC)
4897 >> Miniature circuit breakers
