2CDS271334R0604
Part Number: 2CDS271334R0604
Product Information
Extended Description

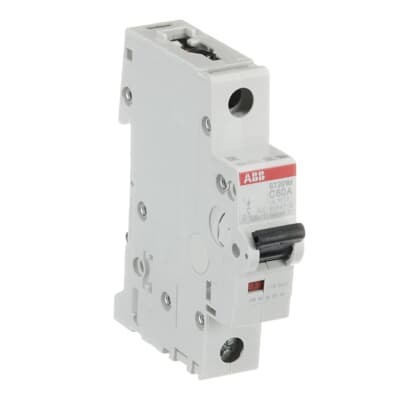

2CDS271334R0604 ABB: ST201M-C60 Miniature Circuit Breaker ST201M-C60 Miniature Circuit Breaker C-Char., 5kA, 60A, 1P
Tripping Characteristic
C
Rated Operational Voltage
acc. to IEC 60947-2 230 V
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)
4 kV
Input Voltage Type
AC
Rated Current (In)
60 A
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(230 V AC) 15 kA | (230 V) 15 kA
Rated Conditional Short-Circuit Current (Inc)
(230 V) 15 kA | (400 V) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics)
(230 V AC) 7.5 kA
Rated Frequency (f)
50 / 60 Hz
Energy Limiting Class
3
Number of Protected Poles
1
Number of Poles
1P
Overvoltage Category
III
Accessories Available
Yes
Connecting Capacity
Flexible 25 ... 25 mm² | Rigid 35 ... 35 mm²
Terminal Type
Double Clamp
RoHS Information
EU Declaration of Conformity, RoHS for ST200M
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221214
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240821
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
171856b6-03a8-4c04-9bae-ec01c5a7d7da Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Ambient Air Temperature
Operation -25 ... +55 °C
Degree of Protection
IP20
Pollution Degree
3
Interrupting Rating acc. to UL1077
(277 V AC) 5 kA | (60 V DC) 10 kA
Width in Number of Modular Spacings
1.0
Product Net Width
17.5 mm
Product Net Height
88 mm
Product Net Depth / Length
69 mm
Product Net Weight
0.115 kg
Built-In Depth (t2)
69 mm
Package Level 1 Units
carton 1 piece
Package Level 1 Gross Weight
0.13 kg
Declaration of Conformity - CE
EU Declaration of Conformity, RoHS for ST200M
Declaration of Conformity - UKCA
9AKK108467A5200
Instructions and Manuals
ST 200 M Technical Data Sheet
Data Sheet, Technical Information
ST 200 M Technical Data Sheet
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
UNSPSC
39121603
eClass
V11.0 : 27141901
IDEA Granular Category Code (IGCC)
4899 >> Miniature circuit breaker (MCB) screw-in model
Standards
CSA 22.2 No. 235 | IEC/EN 60947-2 | UL 1077
Certification Agency
CSA | EN | IEC | UL
