ABB 2CDS271447R0014 Miniature Circuit Breaker - CE, 10 kA
Part Number: 2CDS271447R0014
Quick Summary
ABB 2CDS271447R0014 Miniature Circuit Breaker is a compact single-pole protection device for industrial control panels. In tight switchgear, selecting the correct trip curve and current rating reduces nuisance trips and unplanned downtime. It carries IEC/EN 60947-2 and CE certifications, IP20 protection, and a 10 kA short-circuit capacity, supporting reliable electrical safety. Designed for DIN rail mounting and easy wired connections, it helps panel builders meet tight project timelines while maintaining system reliability. With 1 A nominal current and 1P configuration, it fits compact machines, conveyors, and control logic modules without sacrificing protection.
Product Information
Extended Description

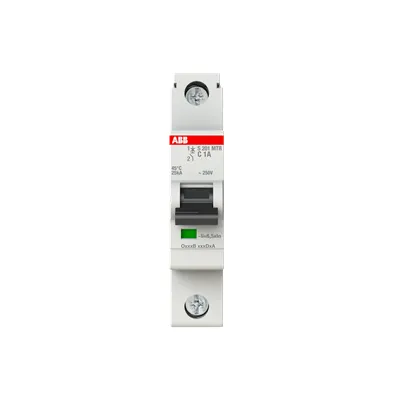

2CDS271447R0014 ABB: S201MTR-C1 Miniature Circuit Breaker C-Char., 10kA, 1A, 1P
Tripping Characteristic
C
Rated Voltage (Ur)
440 V
Rated Operational Voltage
440 V AC | acc. to IEC 60898-1 253 V | acc. to IEC 60947-2 250 V AC
Operational Voltage
Minimum 12 V AC / 12 V DC
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)
at Sea Level 4 kV
Dielectric Test Voltage
50/60 Hz-1 min: 2 kV
Input Voltage Type
AC
Rated Current (In)
1 A
Rated Short-Circuit Capacity
10 kA | (230 V) 10 kA | (400 V) 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
25 kA | (230 V) 25 kA | (400 V) 25 kA
Rated Service Short-Circuit Breaking Capacity (Ics)
12.5 kA
Rated Frequency (f)
50 / 60 Hz
Power Loss
1.4 W
Power Supply Connection
Arbitrary
Contact Position Indication
ON / OFF
Energy Limiting Class
3
Mechanical Endurance
20000 cycle
Number of Protected Poles
1
Number of Poles
1P
Overvoltage Category
III
Tightening Torque
2.8 N·m
Screw Terminal Type
Ring-Tongue Terminal with Captive Screw
Actuator Marking
I / O
Actuator Material
Insulation Group II, Black, Sealable
Housing Material
Insulation Group I, RAL 7035
Options Provided
Suitable for traction application
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position
any
Recommended Screw Driver
Pozidriv 2
Accessories Available
Yes
Number of Batteries
0
Connecting Capacity
Busbar 16 mm² | Flexible 0.75 ... 25 mm² | Rigid 0.75 ... 35 mm²
Terminal Type
Ring-Tongue Terminals
RoHS Information
EU_declaration_of_conforminty_MTR
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20220630
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240821
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Ambient Air Temperature
Operation -40 ... +75 °C | Storage -40 ... +75 °C
Degree of Protection
IP20 | Enclosure with Cover IP40
Pollution Degree
3
Environmental Conditions
28 cycles | with 55 °C / 90-96 % | and 25 °C / 95-100 %
Resistance to Vibrations
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27
25g 2 shocks 13 ms
Width in Number of Modular Spacings
1.0
Product Net Width
17.5 mm
Product Net Height
85 mm
Product Net Depth / Length
69 mm
Product Net Weight
0.125 kg
Pole Net Weight
0.125 kg
Built-In Depth (t2)
69 mm
Package Level 1 Units
box 10 piece
Package Level 1 Gross Weight
1.262 kg
Declaration of Conformity - CE
EU_declaration_of_conforminty_MTR
Instructions and Manuals
S200, S300 instruction manual
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
UNSPSC
39121603
eClass
V11.0 : 27141901
IDEA Granular Category Code (IGCC)
4897 >> Miniature circuit breakers
Object Classification Code
F
Standards
IEC/EN 60947-2
Certification Agency
IEC
Tripping Characteristic C aligns protection with motor and load inrush profiles, reducing nuisance trips while maintaining safety. This translates to higher uptime for drives and control circuits in conveyors, pumps, and fans. Rated voltage of 440 V and rated current of 1 A ensure safe operation across European-style 440 V AC systems, simplifying supplier qualifications and(panel) wiring. Short-Circuit Capacity of 10 kA at 230 V and 25 kA at 400 V provides robust fault handling for panel protection, reducing downstream damage and downtime. Mounted on DIN rails TH35-15 or TH35-7.5 and paired with Ring-Tongue terminations, it enables fast, secure installations and standardized wiring across multi-panel projects. Mechanical Endurance of 20000 cycles lowers maintenance labor and replacement costs in high-cycle environments. Compliance with RoHS/REACH and CE further reduces regulatory risk while supporting sustainable, traceable component supply chains.
