ABB 2CDS271565R0974 Miniature Circuit Breaker - 10 kA
Part Number: 2CDS271565R0974
Quick Summary
ABB 2CDS271565R0974 Miniature Circuit Breaker protects DC control circuits in industrial automation equipment. This compact 1P device delivers reliable overcurrent protection for low-voltage DC systems, reducing downtime from short circuits. Engineers often struggle with ensuring correct operating voltage, pickup current, and compatible breaking capacity in mixed DC/AC environments. The unit complies with IEC/EN 60947-2 and CE declarations and offers IP20 protection with a robust DIN rail mounting solution, making panel integration straightforward. Built for harsh industrial environments, its wide operating temperature and simple wiring translate into lower installation costs, quicker maintenance, and improved overall system reliability. Secondary benefits include clear ON/OFF status indication and low power loss for energy efficiency.
Product Information
Extended Description

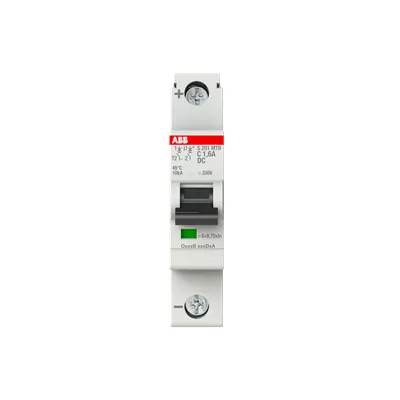

2CDS271565R0974 ABB: S201MTR-C1,6 DC Miniature Circuit Breaker C-Char., 10kA, 1,6A, 1P
Tripping Characteristic
C
Rated Voltage (Ur)
250 V DC
Rated Operational Voltage
440 V AC | acc. to IEC 60898-1 220 V | acc. to IEC 60947-2 250 V DC
Operational Voltage
Minimum 12 V AC / 12 V DC
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)
at Sea Level 4 kV
Dielectric Test Voltage
50/60 Hz-1 min: 2 kV
Input Voltage Type
DC
Rated Current (In)
1.6 A
Rated Short-Circuit Capacity
10 kA | (230 V) 10 kA | (400 V) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
10 kA | (230 V) 10 kA | (400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics)
10 kA
Rated Frequency (f)
50 / 60 Hz
Power Loss
1.4 W
Power Supply Connection
Please Note Polarity of Device
Contact Position Indication
ON / OFF
Energy Limiting Class
3
Mechanical Endurance
20000 cycle
Number of Protected Poles
1
Number of Poles
1P
Overvoltage Category
III
Tightening Torque
2.8 N·m
Screw Terminal Type
Ring-Tongue Terminal with Captive Screw
Actuator Marking
I / O
Actuator Material
Insulation Group II, Black, Sealable
Housing Material
Insulation Group I, RAL 7035
Options Provided
Suitable for traction application
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position
any
Recommended Screw Driver
Pozidriv 2
Accessories Available
Yes
Number of Batteries
0
Connecting Capacity
Busbar 16 mm² | Flexible 0.75 ... 25 mm² | Rigid 0.75 ... 35 mm²
Terminal Type
Ring-Tongue Terminals
RoHS Information
EU_declaration_of_conforminty_MTR
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20220630
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240821
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Ambient Air Temperature
Operation -40 ... +75 °C | Storage -40 ... +75 °C
Degree of Protection
IP20 | Enclosure with Cover IP40
Pollution Degree
3
Environmental Conditions
28 cycles | with 55 °C / 90-96 % | and 25 °C / 95-100 %
Resistance to Vibrations
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27
25g 2 shocks 13 ms
Width in Number of Modular Spacings
1.0
Product Net Width
17.5 mm
Product Net Height
85 mm
Product Net Depth / Length
69 mm
Product Net Weight
0.125 kg
Pole Net Weight
0.125 kg
Built-In Depth (t2)
69 mm
Package Level 1 Units
box 10 piece
Package Level 1 Gross Weight
1.262 kg
Declaration of Conformity - CE
EU_declaration_of_conforminty_MTR
Instructions and Manuals
S200, S300 instruction manual
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
UNSPSC
39121603
eClass
V11.0 : 27141901
IDEA Granular Category Code (IGCC)
4897 >> Miniature circuit breakers
Object Classification Code
F
Standards
IEC/EN 60947-2
Certification Agency
IEC
DC rated protection for 250 V systems ensures safe and predictable switching of DC control circuits, reducing fault exposure in automation panels and enabling safer machine operation. The 1P device with a 1.6 A nominal rating provides precise current limitation for compact drives and logic circuits, improving uptime and protecting expensive control electronics. A C-curve tripping characteristic delivers balanced response to motor inrush and short-circuit currents, while a 10 kA short-circuit capacity offers robust margin for panel protection in synergistic AC/DC applications. DIN rail mounting on TH35-15 or TH35-7.5 rails simplifies installation, accelerates panel assembly, and supports scalable control architectures. Ring-Tongue terminals with captive screws enable secure, vibration-resistant connections for industrial environments, reducing maintenance time. The device’s energy efficiency is enhanced by a low power loss of 1.4 W and an ON/OFF contact indication, aiding diagnostics. Compliance with RoHS and REACH, IP20 protection, and a broad operating temperature range from -40 to +75 °C ensure reliable performance in demanding environments. Built-in durability features include 20,000 mechanical cycles, supporting long service life in high-use panels. With a compact footprint and 69 mm built-in depth, it fits into tight control cabinets while maintaining compatibility with standard panel designs and wiring practices.
