ABB 2CDS271565R0984 Miniature Circuit Breaker - 10 kA
Part Number: 2CDS271565R0984
Quick Summary
ABB 2CDS271565R0984 Miniature Circuit Breaker provides DC overcurrent protection for industrial control circuits. Engineers often contend with nuisance trips and downtime when DC faults occur in compact control panels. This device is CE marked and designed to IEC 60947-2 standards, with a robust IP20 enclosure option for cleanroom and industrial environments. Its 1P, 0.5 A rating and 10 kA fault current rating support precise protection without sacrificing availability. DIN rail compatibility and ring-terminal connections simplify installation, reduce wiring errors, and improve serviceability in modern automation systems. Suitable for traction applications and compliant with RoHS and REACH obligations, it aligns with sustainability goals while delivering reliable protection.
Product Information
Extended Description

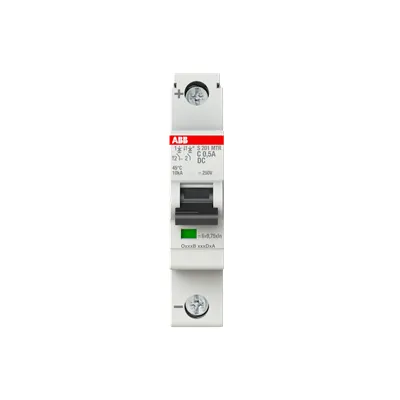

2CDS271565R0984 ABB: S201MTR-C0,5 DC Miniature Circuit Breaker C-Char., 10kA, 0,5A, 1P
Tripping Characteristic
C
Rated Voltage (Ur)
250 V DC
Rated Operational Voltage
440 V AC | acc. to IEC 60898-1 220 V | acc. to IEC 60947-2 250 V DC
Operational Voltage
Minimum 12 V AC / 12 V DC
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)
at Sea Level 4 kV
Dielectric Test Voltage
50/60 Hz-1 min: 2 kV
Input Voltage Type
DC
Rated Current (In)
0.5 A
Rated Short-Circuit Capacity
10 kA | (230 V) 10 kA | (400 V) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
10 kA | (230 V) 10 kA | (400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics)
10 kA
Rated Frequency (f)
50 / 60 Hz
Power Loss
1.3 W
Power Supply Connection
Please Note Polarity of Device
Contact Position Indication
ON / OFF
Energy Limiting Class
3
Mechanical Endurance
20000 cycle
Number of Protected Poles
1
Number of Poles
1P
Overvoltage Category
III
Tightening Torque
2.8 N·m
Screw Terminal Type
Ring-Tongue Terminal with Captive Screw
Actuator Marking
I / O
Actuator Material
Insulation Group II, Black, Sealable
Housing Material
Insulation Group I, RAL 7035
Options Provided
Suitable for traction application
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position
any
Recommended Screw Driver
Pozidriv 2
Accessories Available
Yes
Number of Batteries
0
Connecting Capacity
Busbar 16 mm² | Flexible 0.75 ... 25 mm² | Rigid 0.75 ... 35 mm²
Terminal Type
Ring-Tongue Terminals
RoHS Information
EU_declaration_of_conforminty_MTR
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20220630
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240821
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Ambient Air Temperature
Operation -40 ... +75 °C | Storage -40 ... +75 °C
Degree of Protection
IP20 | Enclosure with Cover IP40
Pollution Degree
3
Environmental Conditions
28 cycles | with 55 °C / 90-96 % | and 25 °C / 95-100 %
Resistance to Vibrations
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27
25g 2 shocks 13 ms
Width in Number of Modular Spacings
1.0
Product Net Width
17.5 mm
Product Net Height
85 mm
Product Net Depth / Length
69 mm
Product Net Weight
0.125 kg
Pole Net Weight
0.125 kg
Built-In Depth (t2)
69 mm
Package Level 1 Units
box 10 piece
Package Level 1 Gross Weight
1.262 kg
Declaration of Conformity - CE
EU_declaration_of_conforminty_MTR
Instructions and Manuals
S200, S300 instruction manual
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
UNSPSC
39121603
eClass
V11.0 : 27141901
IDEA Granular Category Code (IGCC)
4897 >> Miniature circuit breakers
Object Classification Code
F
Standards
IEC/EN 60947-2
Certification Agency
IEC
