Part Number: 2CDS272445R0087
Product Information
Extended Description

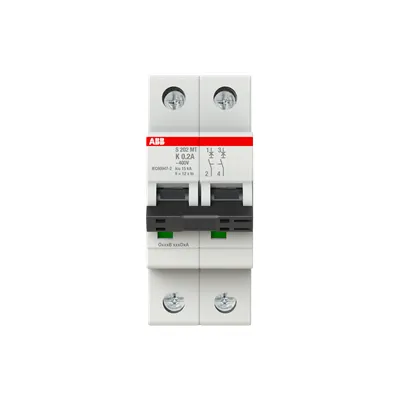

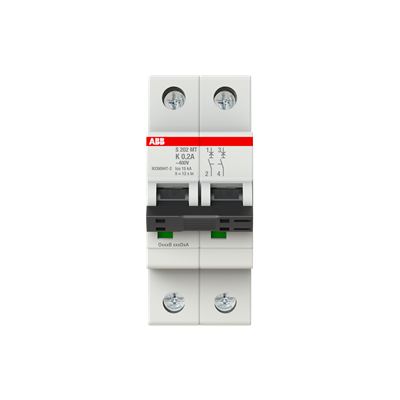

2CDS272445R0087 ABB: S202MT-K0,2 Miniature Circuit Breaker K-Char., 10kA, 0,2A, 2P
Tripping Characteristic
K
Rated Voltage (Ur)
440 V
Rated Operational Voltage
acc. to IEC 60898-1 440 V | acc. to IEC 60947-2 230 V
Operational Voltage
Maximum (Incl. Tolerance) 253 V AC | Maximum (Incl. Tolerance) 66 V DC | Minimum 12 V AC | Minimum 12 V DC
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)
4 kV | at 2000 m 5 kV | at Sea Level 6.2 kV
Dielectric Test Voltage
50/60 Hz-1 min: 2 kV
Input Voltage Type
AC
Rated Current (In)
0.2 A
Rated Short-Circuit Capacity
10 kA | (230 V) 10 kA | (400 V) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
15 kA | (230 V) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics)
11.2 kA
Rated Frequency (f)
50 / 60 Hz
Power Loss
3.4 W
Energy Limiting Class
3
Mechanical Endurance
20000 cycle
Number of Protected Poles
2
Number of Poles
2P
Number of Modular Spacings per DIN Rail
2
Overvoltage Category
III
Tightening Torque
2.8 N·m
Screw Terminal Type
Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking
I / O
Actuator Material
Insulation Group II, Black, Sealable
Housing Material
Insulation Group I, RAL 7035
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position
any
Recommended Screw Driver
Pozidriv 2
Accessories Available
Yes
Connecting Capacity
Busbar 10 / 10 mm² | Flexible with Ferrule 0.75 ... 16 mm² | Flexible 0.75 ... 25 mm² | Flexible 0.75 ... 25 mm² | Rigid 0.75 ... 35 mm² | Stranded 0.75 ... 35 mm²
Installation Size
acc. to DIN 43880 3
Terminal Type
Screw Terminals
RoHS Information
EU Declaration of Conformity S200 MT
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20220630
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240821
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Ambient Air Temperature
Operation -40 ... +70 °C | Storage -40 ... 75 °C
Degree of Protection
Enclosure with Cover IP20
Pollution Degree
3
Environmental Conditions
28 cycles | with 55 °C / 90-96 % | and 25 °C / 95-100 %
Resistance to Vibrations
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27
25g 2 shocks 13 ms
Width in Number of Modular Spacings
2.0
Product Net Width
35 mm
Product Net Height
88 mm
Product Net Depth / Length
69 mm
Product Net Weight
0.25 kg
Pole Net Weight
0.115 kg
Built-In Depth (t2)
69 mm
Package Level 1 Units
box 5 piece
Package Level 1 Gross Weight
1.262 kg
Declaration of Conformity - CE
EU Declaration of Conformity S200 MT
Instructions and Manuals
S200, S300 instruction manual
Data Sheet, Technical Information
S200MT (2022) Datasheet
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
UNSPSC
39121603
eClass
V11.0 : 27141901
IDEA Granular Category Code (IGCC)
4897 >> Miniature circuit breakers
Object Classification Code
F
Standards
IEC/EN 60898-1 | IEC/EN 60947-2 | UL 1077 | CSA 22.2 No. 235
Certification Agency
EN | IEC
