2CDS274566R0358
Part Number: 2CDS274566R0358
Product Information
Extended Description

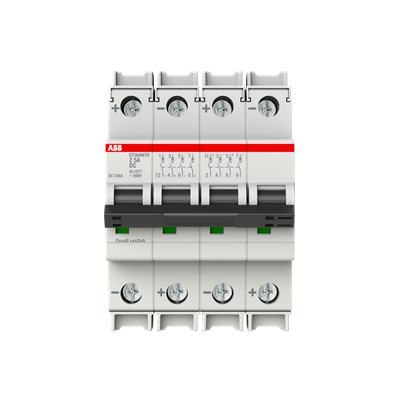

2CDS274566R0358 ABB: ST204MTR-Z5 DC Miniature Circuit Breaker Z-Char., 10kA, 5A, 4P
Tripping Characteristic
Z
Rated Voltage (Ur)
500 V DC
Rated Operational Voltage
440 V AC | acc. to IEC 60947-2 240 V AC
Operational Voltage
Minimum 12 V AC / 12 V DC
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)
at Sea Level 4 kV
Dielectric Test Voltage
50/60 Hz-1 min: 2 kV
Input Voltage Type
DC
Rated Current (In)
5 A
Rated Short-Circuit Capacity
(400 V) 10 kA
Rated Frequency (f)
50 / 60 Hz
Power Loss
8.1 W
Contact Position Indication
ON / OFF
Energy Limiting Class
3
Mechanical Endurance
20000 cycle
Number of Protected Poles
4
Number of Poles
4P
Overvoltage Category
III
Tightening Torque
2.8 N·m
Screw Terminal Type
Ring-Tongue Terminal with Captive Screw
Actuator Marking
I / O
Actuator Material
Insulation Group II, Black, Sealable
Housing Material
Insulation Group I, RAL 7035
Options Provided
Suitable for traction application
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position
any
Recommended Screw Driver
Pozidriv 2
Accessories Available
Yes
Connecting Capacity
Busbar 16 mm²
Terminal Type
Ring-Tongue Terminals
RoHS Information
EU_declaration_of_conforminty_MTR
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20220630
REACH Declaration
Declaration regarding the REACH-Regulation
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240821
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Ambient Air Temperature
Operation -40 ... +75 °C | Storage -40 ... +75 °C
Degree of Protection
IP20 | Enclosure with Cover IP20
Pollution Degree
3
Environmental Conditions
28 cycles | with 55 °C / 90-96 % | and 25 °C / 95-100 %
Resistance to Vibrations
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27
25g 2 shocks 13 ms
Product Net Width
70 mm
Product Net Height
100 mm
Product Net Depth / Length
69 mm
Product Net Weight
0.5 kg
Pole Net Weight
0.125 kg
Built-In Depth (t2)
69 mm
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.512 kg
Declaration of Conformity - CE
EU_declaration_of_conforminty_MTR
Instructions and Manuals
S200, S300 instruction manual
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
UNSPSC
39121603
eClass
V11.0 : 27141901
IDEA Granular Category Code (IGCC)
4897 >> Miniature circuit breakers
Object Classification Code
F
Standards
UL 1077, CSA 22.2 No. 235
Certification Agency
IEC
