2CHA196357A4528
Part Number: 2CHA196357A4528
Product Information
Extended Description

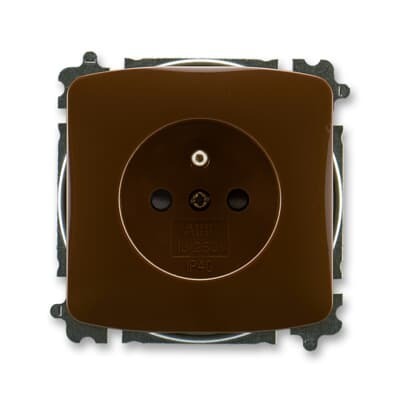

2CHA196357A4528 ABB: Screwless terminals. Fixation via screws only. IP 40 16 A, 250 V AC
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
No non-hazardous waste is sent to a landfill
Environmental Product Declaration - EPD
EPD R60 Earth-pin single socket outlet 6619
Rated Voltage (Ur)
250 V
Rated Current (In)
16 A
Rated Frequency (f)
50 ... 50 Hz
Model Number
CSN-Norm
Number of Phases
1
Number of Active Pin Terminals
0
Number of Gangs
1
Design Range
Tango
Connection Type
Plug Clamp
Mounting Type
Flush mounted (plaster)
Socket Outlet Type
Protective Contact (SCHUKO)
Type of Fastening
Mounting with Screw
Surface Finishing
Untreated | Glossy
Material
Plastic | Thermoplastic
Label Space Provided
No
Color
brown
Number of Batteries
0
RoHS Information
Declaration RoHS_REACH SVHC__2CHC663076X0201
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20210624
REACH Declaration
Declaration RoHS_REACH SVHC__2CHC663076X0201
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20221103
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f29d8b0a-9278-44f8-a438-a832a41ff4fc Czech Republic (CZ)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP40
Short-Circuit Current Rating (SCCR)
0 A
Product Net Weight
64 g
Built-In Depth (t2)
40 mm
Package Level 1 Units
carton 10 piece
Package Level 1 Gross Weight
0 kg
Declaration of Conformity - CE
EU Declaration of Conformity Socket-outlet, flush type, pin-earth - 6619
ETIM 8
EC000125 - Socket outlet
ETIM 9
EC000125 - Socket outlet
